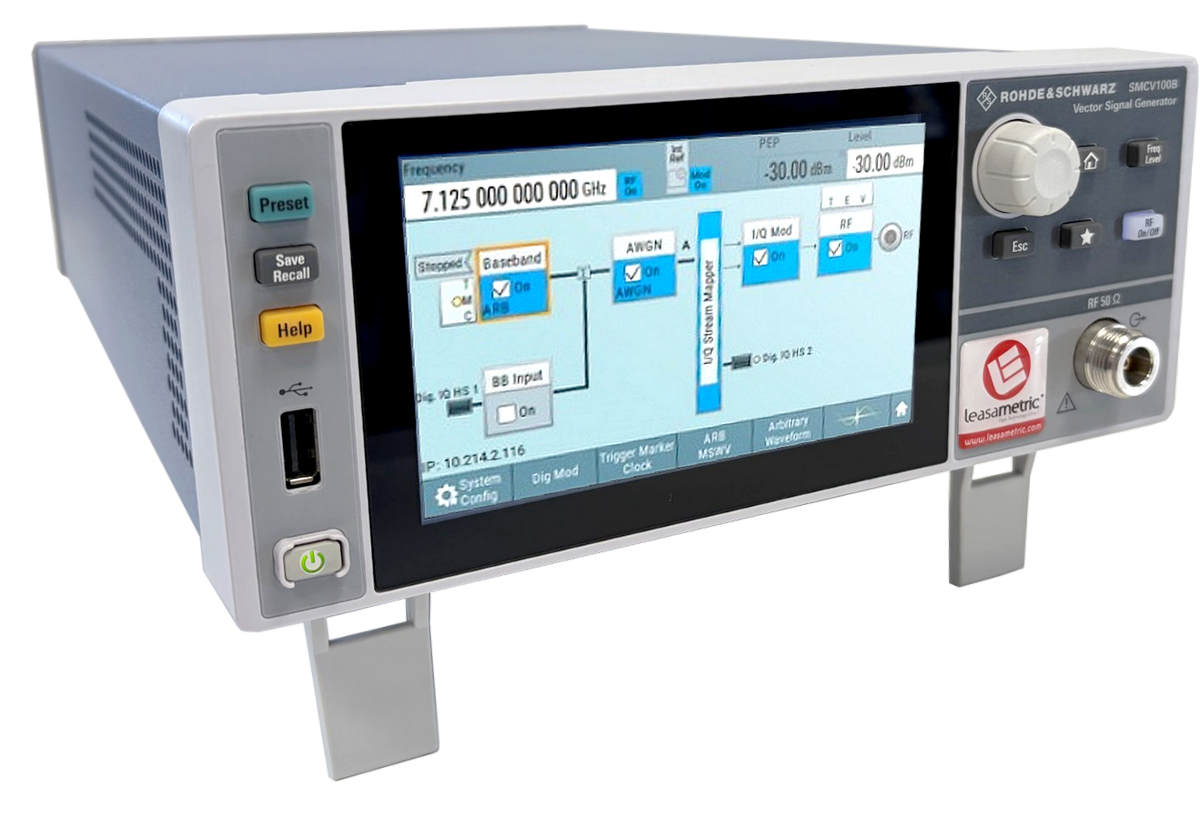

Rohde and Schwarz SMCV100B

RENTAL 249  /week*
SALE
New price Warranty 36 month 1 150

Set your quotation

Service Type *

Sale

Rental period

Duration

Dates

Options preference

type in all the available options you'd like, split with commas

Product price
/ jour*
Additional options total:
/ jour*
Order total:
/ jour*

Quantity

Device description

RF digital signal generator 4 KHz at 3, 6 and 7.125 GHz depending on the options:
  • Option B103 4 KHz at 3 GHz,
  • Option KB106 4 KHz at 6 GHz,
  • Option KB 107 4 KHz at 7.125 GHz,
  • Max output power: -145 to 16 dBm and 25 dBm with the K31 option, resolution 0.01 dB, acceptable return power 2 W, 50 Ω,
  • Harmonics < - 30 dBc, noise < -142 dBc, live noise < - 110 dBc max,
  • Frequency resolution 0.001 Hz,
  • Frequency accuracy < 1 × 10-7
  • Standard RF 60 MHz modulation width up to 240 MHz optional,
  • Digital modulation I/Q 64 Msample, with option K511 512 Msample, and the option K512 1 Gsample,
  • Internal modulator (options): AM/FM/RDS, DAB/T-DMB, DRM, ATSC/ATSC-MH, ATSC 3.0, DVB-T and T2, ISDB-T/Tsb, DTMB, DVB-S/DVB-S2, DVB-S2X.
  • Digital modulations with the WinIQSIM2™ option: 5G New Radio, EUTRA/LTE, 3GPP FDD/HSPA/HSPA - BS/MS tests, GSM/EDGE/CDMA2000®, 1xEV-DO, 3GPP TDD LCR, IEEE 802.11, Bluetooth® EDR/low energy, Bluetooth® 5.0, LoRa®, GPS/Galileo/GLONASS/IRNSS/BeiDou,
  • Pulse modulations with the K198 option,
  • 5'',
  • Remote driving: LAN/ USB 3 as standard.
The rental price is given as an indication for the basic version 3 GHz. Other NC configurations.

Available options for this device

CAL Standard Calibration for the basic version 345
B106 Frequency increased to 6 GHz (price to add to 3GHz version) 5 450
