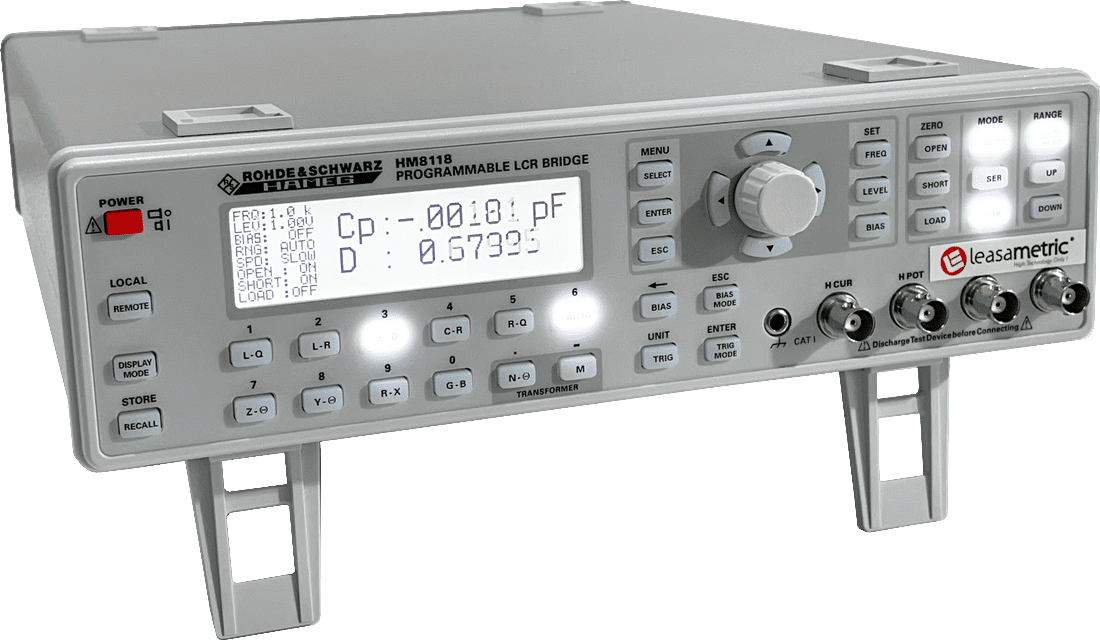

HM8118 Rohde & Schwarz

Economic 200 KHz Programmable RLC Bridge :

• Basic Accuracy 0.05 %,
• Measurement Functions L, C, R, |Z|, X, |Y|, G, B, D, Q, Θ, ∆, M, N,
• Test Frequencies 20 Hz…200 kHz,
• Up to 12 Measurements per Second,
• Binning Interface HO118 (optional) for automatic Sorting of Components,
• Internal programmable Voltage and Current Bias,
• Transformer Parameter Measurement,
• External Capacitor Bias up to 40 V,
• Kelvin Cable and 4-Terminal SMD Test Adapter included,
• Galvanically isolated USB/RS-232 Dual-Interface, optional IEEE-488 (GPIB)
