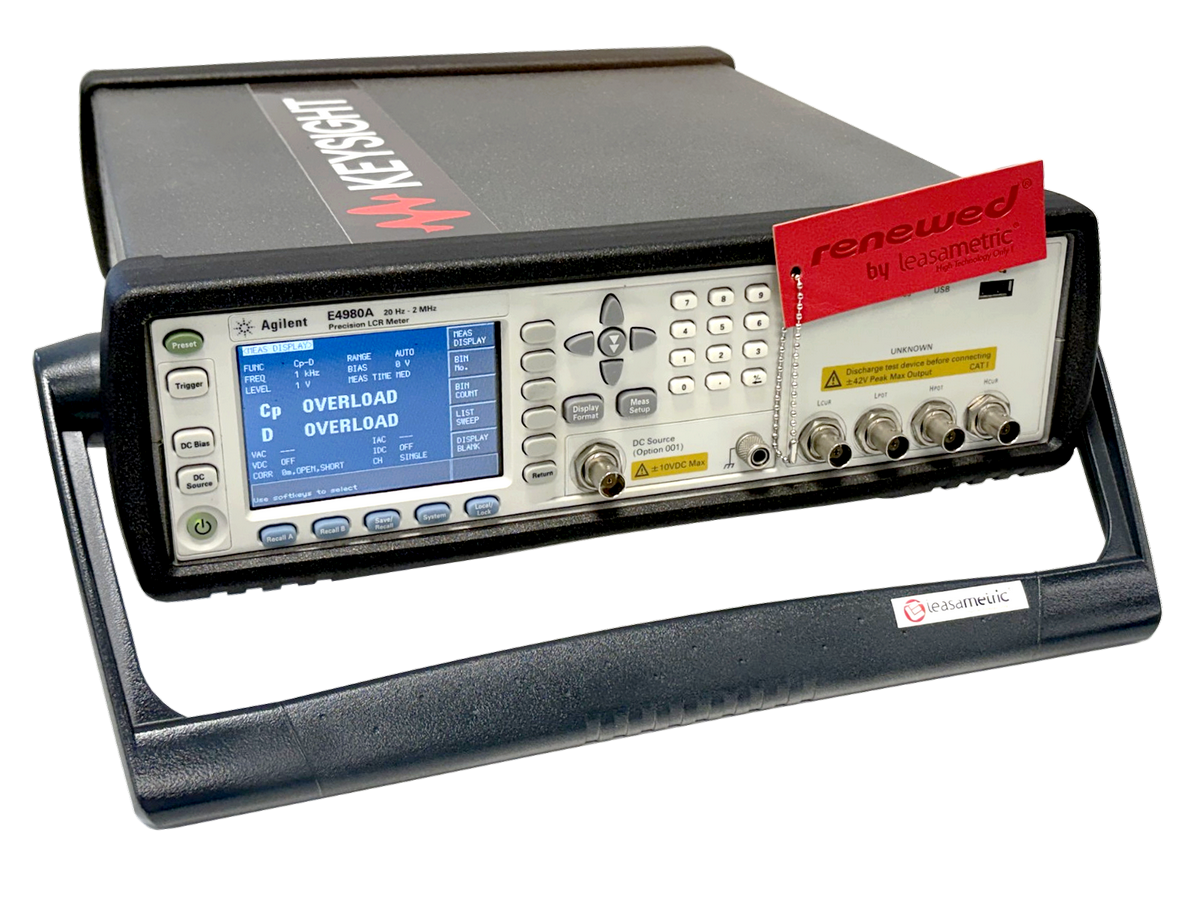

E4980A Keysight / Agilent
Capacitance Meters and Analysers
High Performances Keysight E4980A RLC bridge 20 Hz to 2 MHz, USB and GP-IB interfaces.
| RENTAL | 445 € /week* | |||||||
| SALE |
|
|||||||
Specifications : E4980A Keysight / Agilent
RLC bridge 20 Hz to 2 MHz :
- Accuracy 0.05 %,
- Resolution 7 digits,
- Fast acquisition, 5.6 ms/point,
- Measurements |Z|, |Y|, R, X, G, B, L, C, D, Q, Rdc, Idc, Vdc,
- USB and GP-IB interfaces,
- T bias +/-40 V DC and 20 V/100 mA RMS test signals with option 1.
ReNEWed® T&M Instruments are available more quickly with the same warranties as new instruments if you purchase calibration.
Download the technical documentation E4980A Keysight / Agilent
Main features of the E4980A Keysight /Agilent
The Keysight E4980A analyser offers the combination of speed, versatility and accuracy for a wide range of component measurements. With fast and accurate measurement speed and exceptional low and high impedance performance, the E4980A is the ideal measuring instrument for the R&D sector as well as for component and material manufacturing testing. You will be able to improve your design and test productivity with LAN, USB and GPIB PC connectivity. The E4980A with the N1500A-005/006 Material Measurement Suite simplifies measurements from device setup to reporting.
Its frequency ranges from 20 Hz to 2 MHz. The Keysight E4980A tester is a follow-up to the Keysight 4284A and includes a modern PC interface.
Keysight / Agilent E4980A Highlights
- Accuracy of 0.05% with superior measurement repeatability at low and high impedances
- 7-digit resolution
- Fast acquisition, 5.-ms/point
- Measurement │Z│, │Y│, R, X, G, B, L, C, D, Q, Rdc, Idc, Vcd
- USB and GP-IB interfaces
- Polarisation rate +/- 40V DC and test signals 20V/100mA RMS with option 1
- High speed measurements: 5.6 ms
Leasametric has a repair service and a metrology laboratory for the calibration of your E4980A Keysight and other measuring devices.
To learn more about the E4980A Keysight, you can download the manual in the “technical information” tab.
Also Available economic E4980AL model (300 KHz to 1 MHz).
