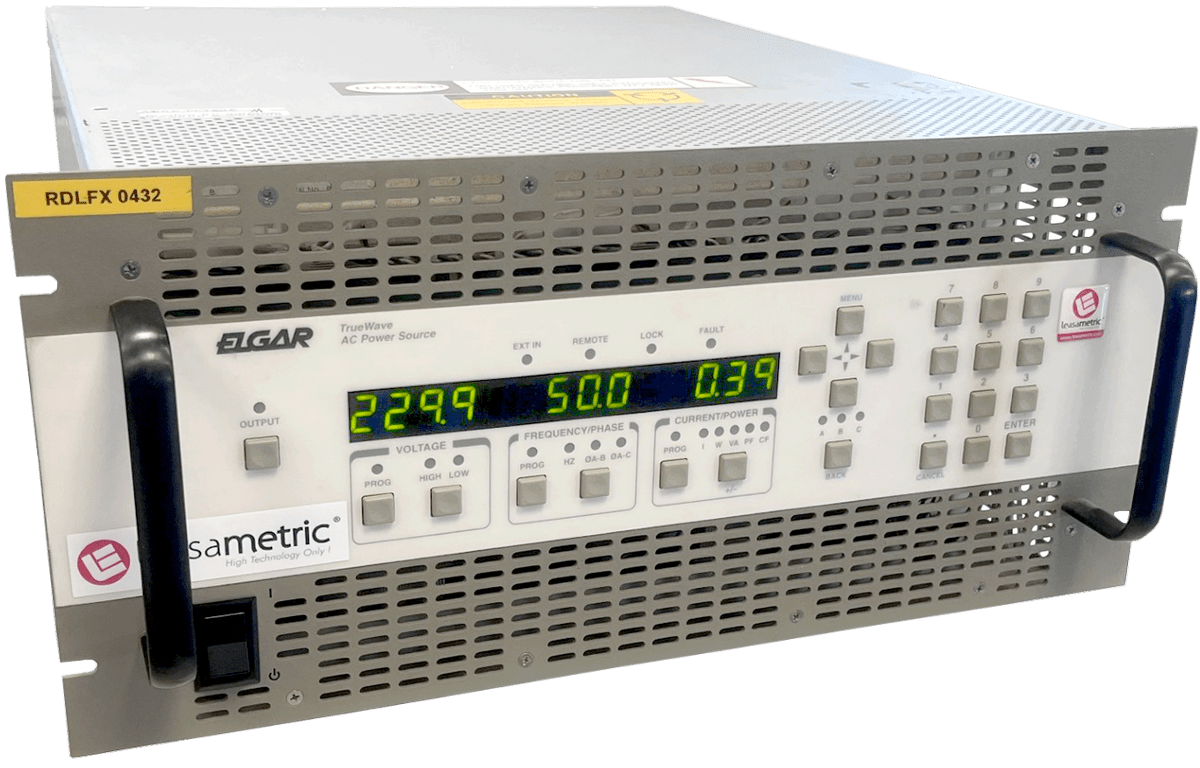

TW5250-4 Elgar reNEWed by Leasametric
AC power
5250 VA AC and DC Power Supply, EEE-488.2 interface and RS-232 interfaces.
| RENTAL | 437 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : TW5250-4 Elgar reNEWed by Leasametric
AC and DC Power Supply Elgar TrueWave Series :
- 5250 VA,
- AC mode : 0 to 156 Vrms L-N low range 0 to 312 Vrms L-N high range,
- DC mode : 0 to 207 V low range 0 to 414 V high range,
- Current Per Phase : 16 A to 115 V in low range; 8 A to 230 V in high range (per 1850Va module),
- IEC Flicker Test Capable,
- Field Parallel Configurable,
- 3 phase output from a single unit,
- Low Harmonic Distortion
- DC Output,
- IEEE-488.2 interface and RS-232 interfaces,
- 47 to 63 Hz,
- Testing to European Standards including EN 61000-3-2,
- Input AC with option 4 : PFC 342-457 Vrms (L-L), 4-wire,
- Weight : 108 lbs. (49 kg).
Download the technical documentation TW5250-4 Elgar reNEWed by Leasametric
You need to be connected to consult and download the documentation
Create my account / Connexion
The Elgar TrueWave (TW) is designed for testing today’s complex electronics, including avionics and commercial applications requiring DC and sine wave testing.
The TW is ideal for testing electronic equipment for compliance to new European Standards such as harmonics.
