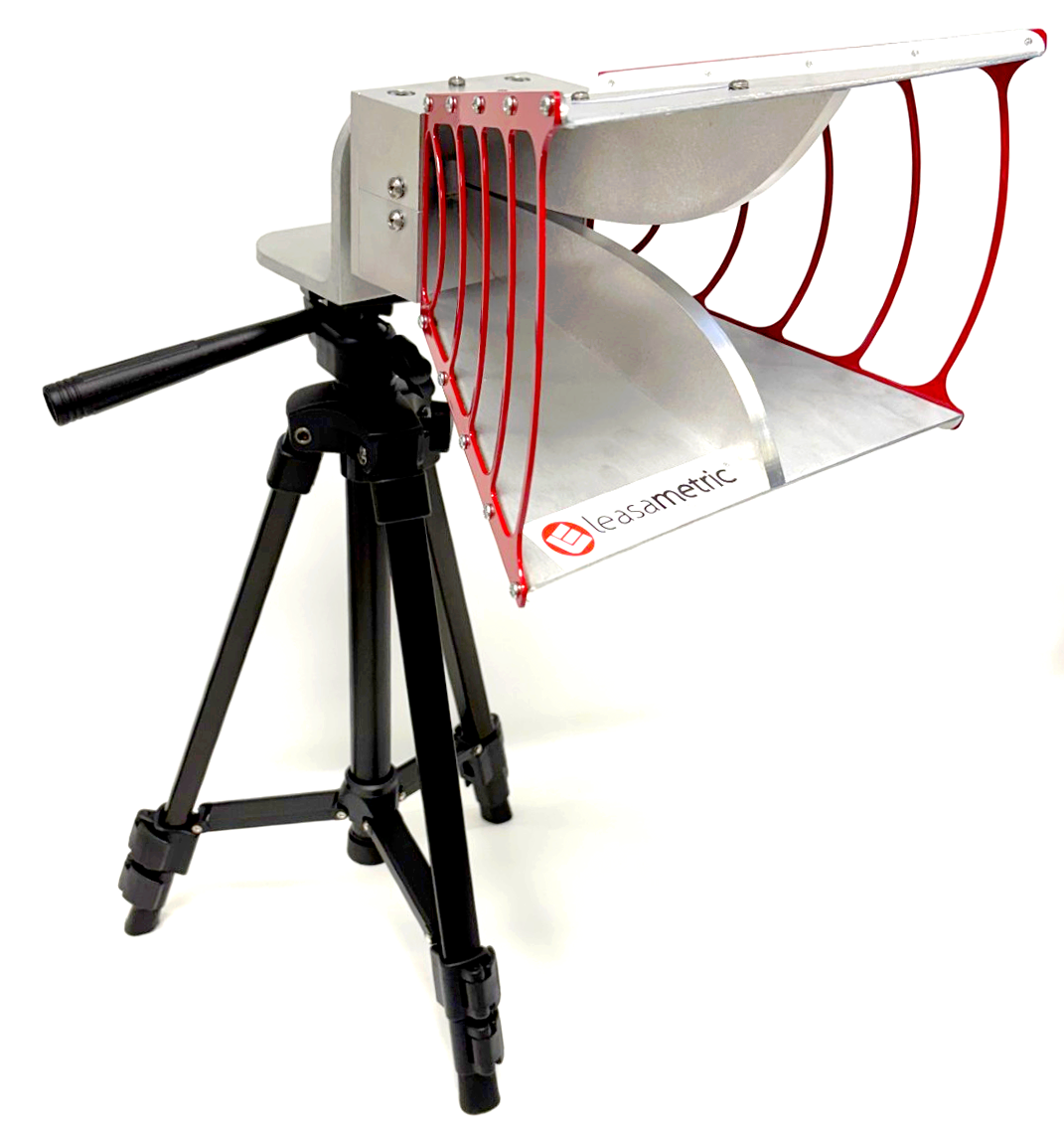

3115 ETS Lindgren reNEWed by Leasametric

High-gain horn antenna :

• Frequency range : 750 MHz to 18 GHz (continuous sweep without band gaps, ideal for automated testing),
• Power handling : 300 W continuous (up to 500 W peak),
• Nominal impedance : 50 Ω,
• VSWR (Voltage Standing Wave Ratio) : Low, typically less than 2:1 above 800 MHz (maximum 5:1 at 750 MHz),
• Linear polarization,
• Directivity / Pattern : Directional, offering uniform gain across the entire band without degradation due to higher-order modes,
• Front-to-Back ratio : 20 dB,
• Precision N-type female connector.
