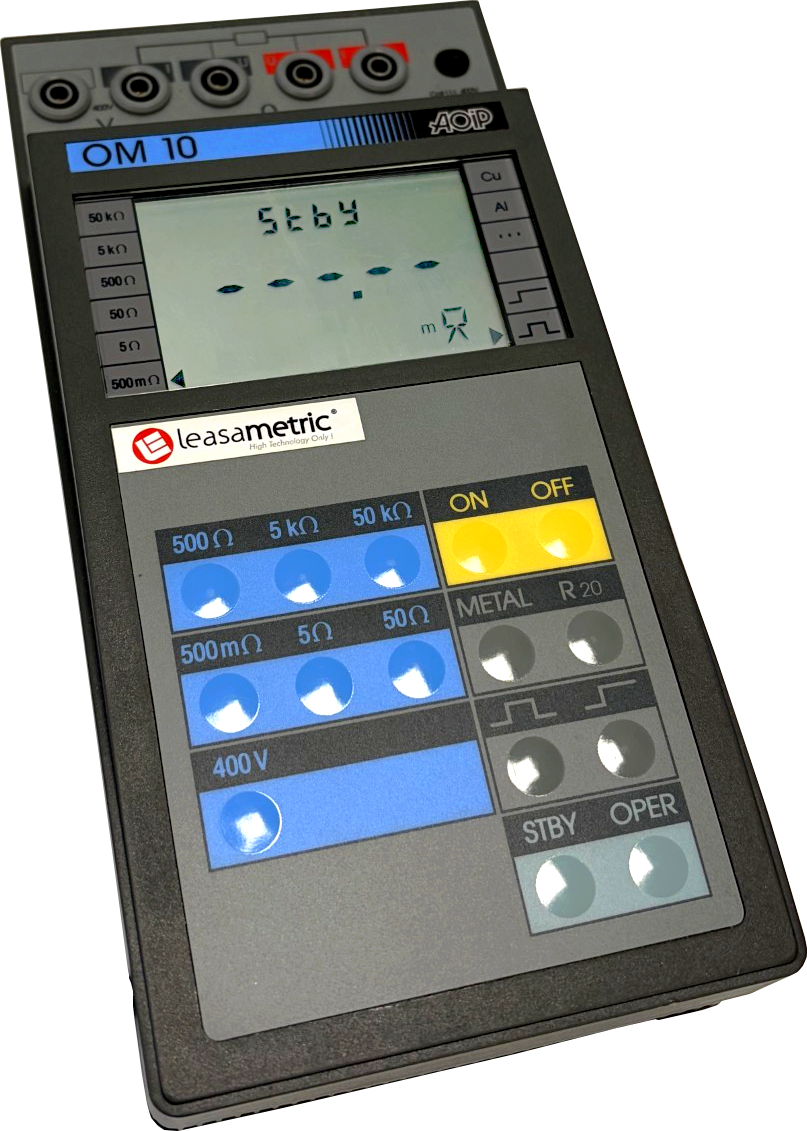

OM10 AOIP reNEWed by Leasametric
Megohm Meters, Milliohm Meters
Portable mains/battery-powered micro-ohmmeter; 4-wire resistance measurement up to 50 kΩ with 10 µΩ resolution; LCD screen; 10–20 V, 0.5 A power supply and battery.
| RENTAL | 82 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : OM10 AOIP reNEWed by Leasametric
Portable mains/battery-powered micro-ohmmeter :
- 4-wire resistance measurement up to 50 kΩ with 10 µΩ resolution,
- 0.05% accuracy,
- Voltage measurement up to 400 V with 1 V resolution,
- 1% accuracy,
- Continuous measurement current for inductive resistances or pulsed current for non-inductive resistances,
- Automatic compensation for parasitic EMFs,
- LCD display, 50,000 counts, 13 mm digit height,
- Temperature compensation,
- Power supply: 10–20 V, 0.5 A; 1.7 Ah NiCd battery.
Download the technical documentation OM10 AOIP reNEWed by Leasametric
You need to be connected to consult and download the documentation
Create my account / Connexion
The portable OM10 micro-ohmmeter uses a 4-wire method to measure low-value inductive and non-inductive resistances up to 50 kΩ, with a continuous or pulsed test current of up to 100 mA.
