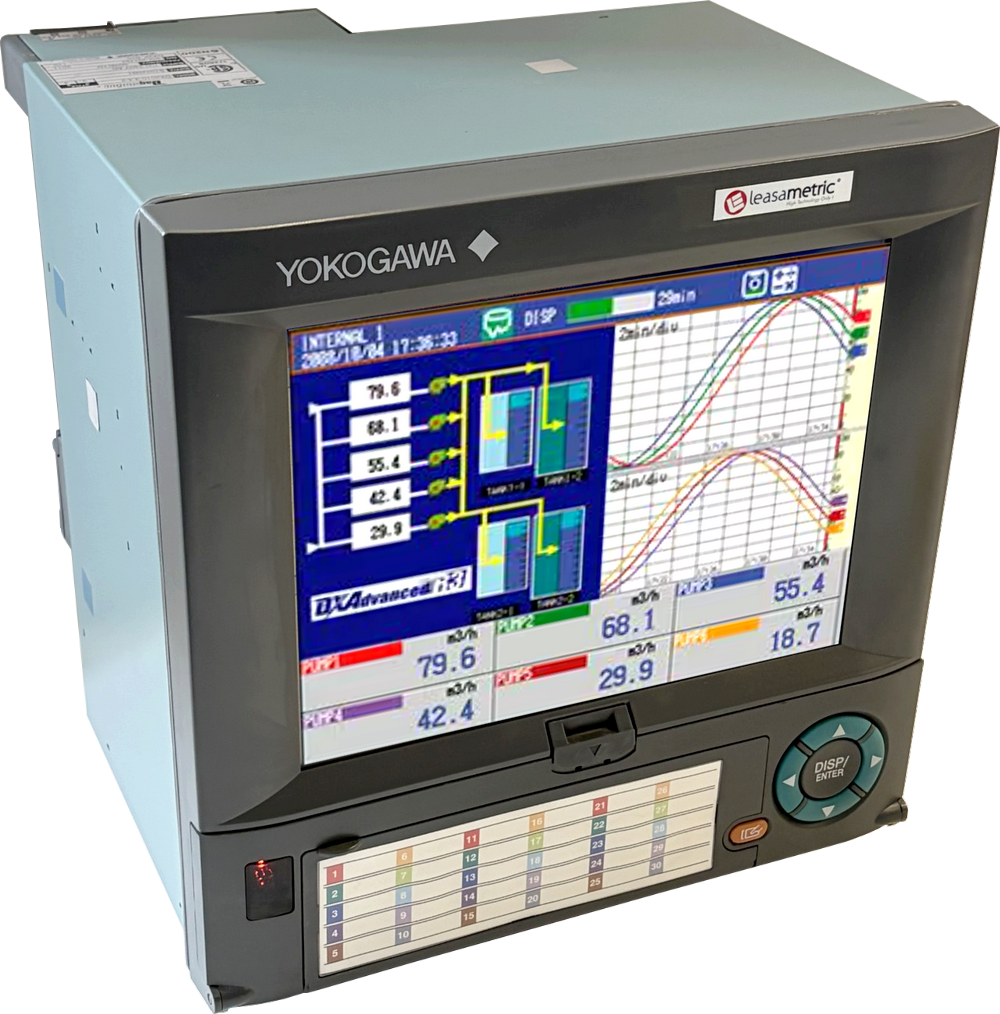

DX2010 Yokogawa reNEWed by Leasametric
Plotters - Loggers
10-Ch paperless recorder, supporting DC voltage, thermocouples, RTDs (resistance temperature detectors), and digital inputs, 10.4-inch color TFT LCD screen, Ethernet and USB interfaces.
| RENTAL | Not for rent | |||||||||||
| SALE |
|
|||||||||||
Specifications : DX2010 Yokogawa reNEWed by Leasametric
DX2010 ten channels paperless recorder :
- 10 input channels supporting DC voltage, thermocouples, RTDs (resistance temperature detectors), and digital inputs,
- 10.4-inch color TFT LCD screen (640 x 480 pixels) for clear operational views and custom graphics,
- Measurement Intervals : Standard 1-second interval across all channels, with fast-sampling modes available up to 125 ms,
- Data Storage : CompactFlash card recording slot and an optional internal memory of up to 400 MB or more depending on configuration specs,
- Communication : Optional Ethernet and USB interfaces for seamless network integration and data retrieval,
- Physical Dimensions : Standard panel-mounting size of 288 x 288 x 222 mm.
Download the technical documentation DX2010 Yokogawa reNEWed by Leasametric
The DX2000 series is a DAQSTATION that displays realtime measured data on a color LCD and saves data on a CompactFlash memory card (CF card).
It can be hooked up to network via Ethernet, which enables to inform by E-mail and to monitor on Web site as well as to transfer files by using FTP.
Also, it can communicate with Modbus/RTU or Modbus/TCP.
It comes with a four, eight, ten, twenty, thirty, fortychannel or forty eight-channel model.
As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel.
The data saved on a CF card can be converted by data conversion software to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC.
Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.
