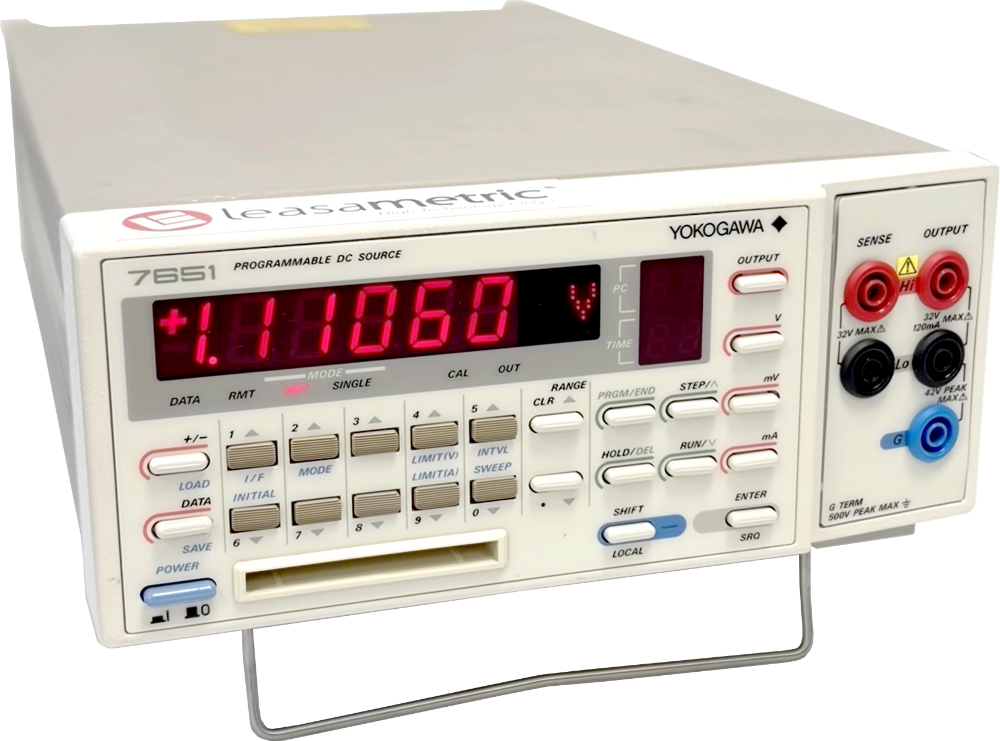

7651 Yokogawa
DC Power Supplies
Programmable DC voltage/current source, and high-precision electronic load, GP-IB remote control.
| RENTAL | 175 € /week* | |||||||
| SALE |
|
|||||||
Specifications : 7651 Yokogawa
Programmable DC voltage/current source :
- +/-32 V,
- 120 mA,
- 300 W,
- High-precision electronic load,
- High accuracy : ± 0.01% of setting ±200 µV (10 V range, 90 days, 23 ± 5˚C),
- High-speed response : 10 ms/± 0.1%,
- Low noise : 15 µVp-p (1 V range, DC to 10 Hz),
- Up to 50 steps of output data can be saved,
- GP-IB remote control (standard).
Download the technical documentation 7651 Yokogawa
The 7651 is a general-purpose DC source developed on YOKOGAWA’s state-of-the-art DC standard technology.
The dual multiplying D/A converter has enabled the compatibility of highspeed response and high resolution.
The 7651 also provides high accuracy and stability.
In addition to the source function (current supply), the sink function (current absorption) is also available, so the 7651 can be used as not only DC voltage/current source but also high-precision electronic load.
Further, a series of powerful functions to meet the system use such as the programming function up to 50 steps, the IC memory card capable of storing 7 patterns of programs, and GP-IB interface are provided as standard.
