ONA-800A VIAVI
Cable - Link Testers
OneAdvisor-800, “all-in-one” relay antenna installation and maintenance test solution.
| RENTAL | 560 € /week* | ||||
| SALE |
|
||||
Specifications : ONA-800A VIAVI
OneAdvisor-800, “all-in-one” relay antenna installation and maintenance test solution :
- ONA-800A pack with E8136C and E81FMC1 OTDR module,
- Long range 1310/1550/1625nm single-mode OTDR with 47.5/47/47.5 dB dynamic range,
- Replaces several independent tools (especially, OTDR, CAA, fiber inspection microscope, RF spectrum analyzer, base station analyzer, etc.),
- Covers all types of radio links (LTE and 5G) and all topologies (macro cells, small cells, C-RAN and/or DAS),
- Automatic test procedures with Job Manager and StrataSync,
- Cable and antenna analyzer 12.5 MHz to 6 GHz,
- Frequency accuracy ±2.5 ppm at 25°C,
- RF analysis power from -30 to 0 dBm,
- Distance to fault (DTF), 1-port cable and phase loss, 2-port transmission, Smith chart,
- Spectrum analyzer with real-time persistence for 5G FR1 (9 KHz to 6 GHz).
Download the technical documentation ONA-800A VIAVI

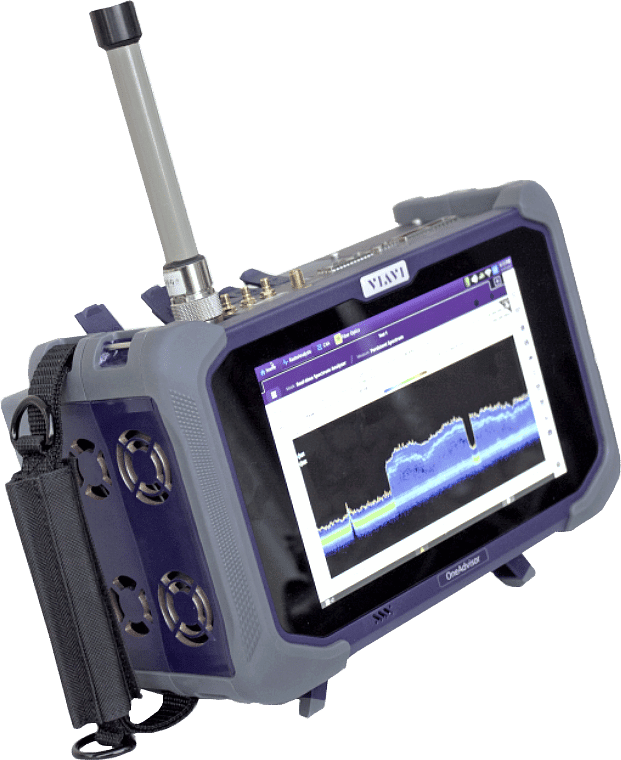

The VIAVI OneAdvisor ONA-800A is a powerful field tool for radio technicians to test fiber optic, radio (RF) or CPRI/Ethernet links, replacing several independent tools (OTDR, CAA, fiber inspection microscope, analyzer of RF spectrum, etc.) and significantly reducing the total cost of ownership.
OneAdvisor-800 enables simple, fast and accurate testing, from installation to maintenance.
