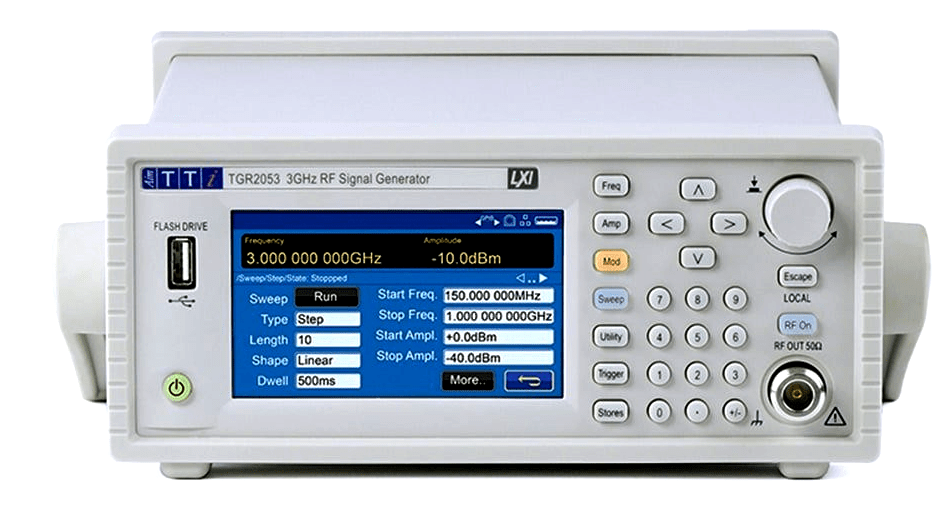

TGR2053 TTI
Signal Generators
RF signal generator, 150 KHz to 3 GHz, USB/LAN control, 4.3″ TFT LCD screen.
| RENTAL | 176 € /week* | ||||
| SALE |
|
||||
Specifications : TGR2053 TTI
Compact and high-performance RF signal generator :
- 150 kHz to 3 GHz,
- 10 Hz resolution,
- Output level -127 dBm to +13 dBm, 50 Ω,
- Phase noise <-124 dBc/Hz (typ.),
- Modulations : AM, FM, PM, ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK,
- Built-in functions : Sine, Square, Ramp, Triangle, PRBS, user-defined waveform,
- USB/LAN control,
- 4.3″ TFT LCD screen (480 x 272).
Download the technical documentation TGR2053 TTI
The TTi TGR2053 is a compact and powerful RF signal generator.
It offers a bandwidth of up to 3 GHz and a maximum output power of +13 dBm.
The TGR2053 provides a frequency resolution of 10 Hz and a high output accuracy of ±0.3 dB.
The signal generator also has a flat amplitude response of ±0.15 dB, resulting in consistent output across the entire frequency range.
The TGR2053 also offers AM/FM/PM modulation capabilities, as well as basic pulse modulations such as OOK. It can also perform simultaneous scanning and modulation, enabling uninterrupted frequency sweeps.
In addition to the standard analog output, the TGR2053 features USB and LAN interfaces. This allows for remote control and programming of the RF signal generator.
