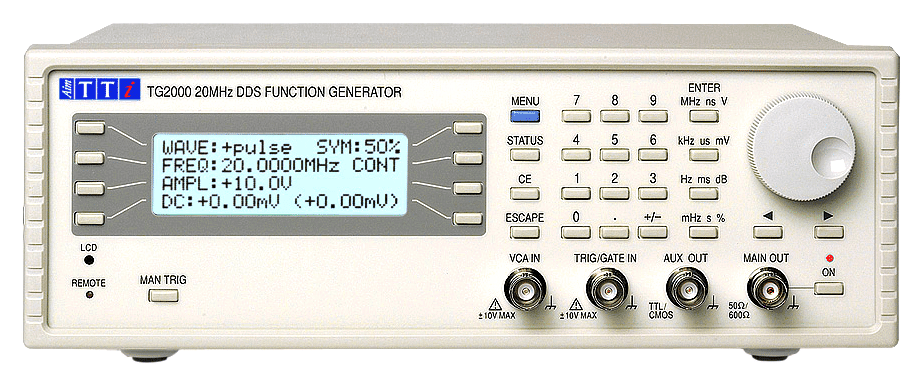

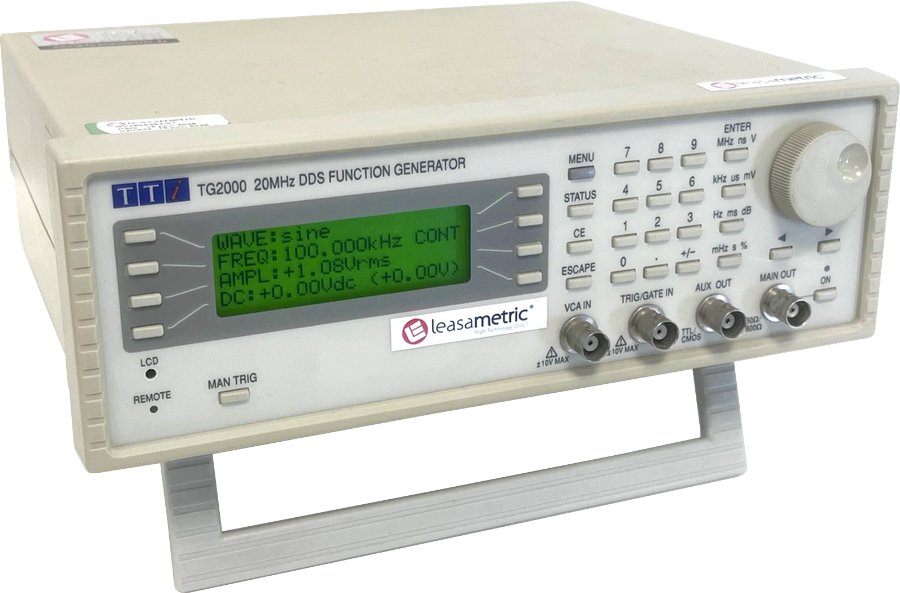

TG2000 TTI

10 MHz or 20 MHz function generator with the precision of Direct Digital Synthesis :

• 0.001 Hz to 10MHz or 20MHz frequency range,
• TG1000 : Low cost, 10 MHz, no programmable,
• 6 digits or 1 mHz setting resolution,
• 1 ppm stability and better than 10 ppm absolute accuracy for one year,
• Sine, square, triangle, positive pulse and negative pulse waveforms,
• Low distortion, high spectral purity sine waves,
• Internal sweep, linear or logarithmic, full range phase continuous, adjustable marker,
• Modulations modes of gated, AM, FSK and tone switching; built-in trigger generator,
• 5 mV to 20 V pk-pk output from 50 Ω or 600 Ω,
• Multi function auxiliary output,
• Storage for up to nine complete instrument set-ups in non-volatile memory,
• Fully programmable via RS-232 or USB interfaces (TG2000 only)
