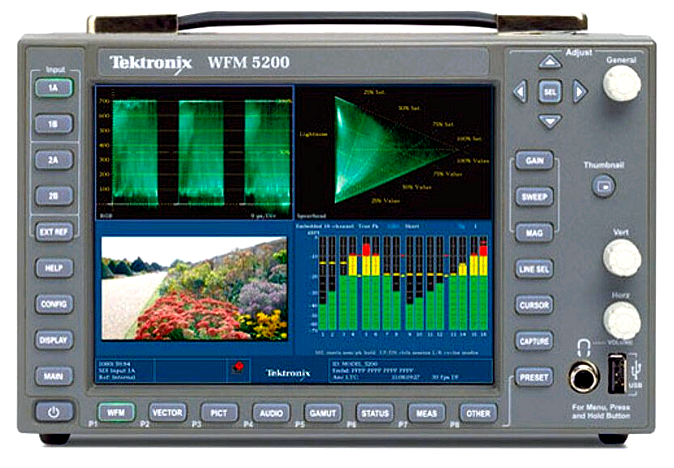

WFM5200 Tektronix
Video Generators and Analysers
Waveform monitor with high brightness LED display, USB port.
| RENTAL | 445 € /week* | |||||||
| SALE |
|
|||||||
Specifications : WFM5200 Tektronix
HD/SDI Waveform Monitor :
- Waveform monitor with high-brightness LED display,
- Basic video and audio monitoring of SD/HD signals with crisp CRT-like traces,
- Automatic detection of HD/SDI signals,
- 4 SDI inputs with multi-format and multi-standard support,
- Supports dual-link video formats: 4:2:2, 4:4:4, alpha channel, 10-bit, and 12-bit,
- 32 instrument presets for quick access to commonly used settings,
- Easy vertical gain/horizontal magnification control for easy measurement of video waveform parameters,
- Measures external reference signals such as Black Burst or Tri-Level Sync,
- Alarms, status reports, and error logging for over 10,000 events,
- USB port for transferring presets, screenshots, and error logs,
- Interface capabilities SNMP and Ethernet remote and GPI control for centralized monitoring and control,
- DVI-I connection to connect a digital or analog XGA display to the monitor.
Download the technical documentation WFM5200 Tektronix
You need to be connected to consult and download the documentation
Create my account / Connexion
The Tektronix WFM5200 portable waveform monitor allows you to adjust and balance your professional cameras in a studio or OB truck (calibration, error detection, content correction, and more).
In addition to offering automatic HD/SDI signal detection, the WFM5200 features four SDI inputs with multi-format, multi-standard, and Dual Link video format support.
Finally, the WFM5200 can be upgraded to enhance its capabilities.
