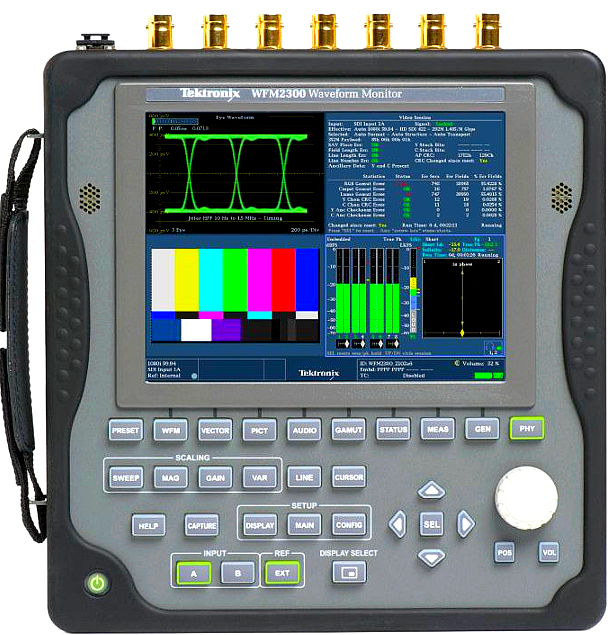

WFM2300 Tektronix

Multiformat, Multistandard Portable Video Waveform Monitor :

• Portable instrument that is ideal for field production setup and troubleshooting,
• SDI Eye pattern measurement including eye amplitude, rise/fall time and overshoot measurements as well as jitter waveform display; with Option ASI, an Eye pattern can also be displayed,
• Operates with internal, rechargeable, and replaceable battery unit; external recharger kit and a battery unit for replacement is available as an option,
• Coaxial cable simulation / margin test loop for secure system installation,
• Optical SDI input and output monitoring compliant to SMPTE297 (Option SFP),
• HDMI signal monitoring (Option SFP-HDMI),
• One SDI input and one MULTI input with multiformat, multistandard support,
  • The MULTI input can be configured as SDI/ASI, AES or LTC input,
  • Dual Link (SMPTE372) format using both SDI inputs is supported as standard,
  • 3G-SDI (Level A and Level B) format support (Option 3G),
  • ASI format support (Option ASI),
• 3G/HD/SD color bar and pathological signal generator with genlock and moving picture for troubleshooting signal paths and equipment; test signals to adjust a picture monitor are also available,
• Comprehensive audio monitoring tool
  • Up to 16 channels embedded AES/EBU audio,
  • Multichannel surround sound display and flexible lissajous display,
  • Audio loudness meter available in the Audio display (Option LOUD),
  • Dolby metadata decode and peak level metering (Option DBE),
  • Dolby E Guard Band meter with user-defined limits (Option DBE),
• AES audio test tone generator for embedded and AES output,
• Dolby E test stream generation for embedded and AES output (Option DBE),
• Audio/Video Delay measurement and Propagation Delay measurement with the test signal generation (Option AVDP),
• ASI monitoring tools (Option ASI)
  • ASI Eye pattern measurement including automatic measurements,
  • ASI signal polarity check,
  • MPEG2 PID Tree display,
  • TS Bit Rate display,
  • Continuity counter error detection
  • Error logging
• Ability to display the analog waveform of the external reference signal and LTC signal for quick diagnosis of the potential issues in sync and time distribution system,
• Patented Diamond and Arrowhead displays for color gamut compliance monitoring,
• Comprehensive data monitoring helps to quickly resolve difficult content quality and reliability issues (Option DATA)
  • Simultaneous CEA708/608 Closed Caption monitoring; teletext and OP47 subtitle monitoring,
  • Detect and decode ANC data including AFD, WSS, Video Index, TSID, V-Chip, Broadcast Flag/CGMS-A, VITC, LTC, and ANC TC,
  • ARIB STD-B35/B37/B39, TR-B22, and TR-B23 support,
  • ANC Data Inspector and SDI Data Analysis display helps troubleshoot ANC data and SDI data problems,
• Variety of monitoring displays
  • Patented Timing and Lightning displays makes facility and interchannel timing easy,
  • Extensive alarms, status reporting, and error logging for 10,000 events simplifies error correction tasks,
  • Voltage and timing cursors for precise measurements,
  • User-definable Safe Area Graticules and AFD Graticule facilitate editing and format conversion tasks,
• Unmatched display versatility
  • Flexible Quad Tile display tailored to various application needs to increase productivity,
  • Full Screen mode that maximizes display size for precise adjustments,
  • Thumbnail picture for content verification,
• Unmatched usability
  • 32 presets for quick recall of instrument settings,
  • USB port enables easy transfer of presets, screenshots, and error log,
  • Internal speaker and headphone port for easy monitoring of audio channels,
  • Intuitive menu structure and context-sensitive help,
  • High-brightness display with crisp, high-resolution LED backlight, ideal for indoor and outdoor usage,
  • SNMP capability facilitates centralized monitoring and control,
  • Super lightweight and low power consumption design for portable, battery-powered applications.
