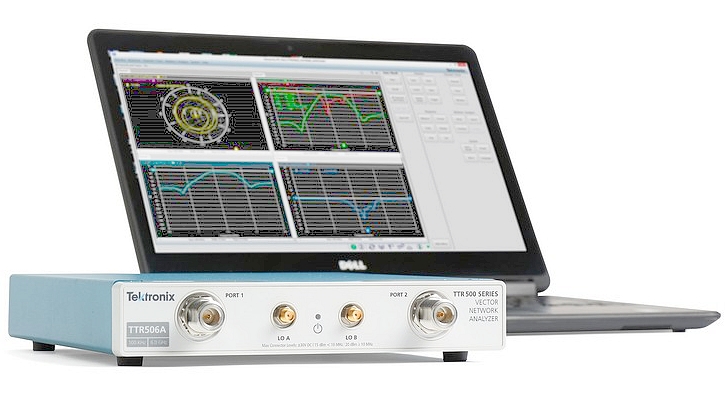

TTR506A Tektronix

Network Analysers < 6Ghz

Network Analyser from 100 kHz to 6 GHz, Function : 2-port, 2-path S-parameter test set ; Type-N Female test portsSystem Dynamic Range : 125 dB (200 MHz to 3 GHz); 122 dB (3 GHz to 6 GHz), IF BW : 1 Hz to 500 kHz. Trace Noise : 0.006 rms dB, typical, Stability: 0.008 dB/°C (300 kHz to 3 GHz); 0.015 dB/°C (3 GHz to 6 GHz). Source Power : -50 to +7 dBm, Sweep Type : Linear, log, Number of Points : 1 to 20001, Up to 16 traces, Up to 9 Markers, RoHS Compliant.Bias tee: Internal on both ports. Measure passive/active components and RF modules, test cables/adapters, etc.

RENTAL 375  /week*
SALE
New price Warranty 36 month 13 495
ReNEWed® price Warranty 36 month 9 950

Specifications : TTR506A Tektronix

Network Analyser from 100 kHz to 6 GHz, Function : 2-port, 2-path S-parameter test set ; Type-N Female test portsSystem Dynamic Range : 125 dB (200 MHz to 3 GHz); 122 dB (3 GHz to 6 GHz), IF BW : 1 Hz to 500 kHz. Trace Noise : 0.006 rms dB, typical, Stability: 0.008 dB/°C (300 kHz to 3 GHz); 0.015 dB/°C (3 GHz to 6 GHz). Source Power : -50 to +7 dBm, Sweep Type : Linear, log, Number of Points : 1 to 20001, Up to 16 traces, Up to 9 Markers, RoHS Compliant.Bias tee: Internal on both ports. Measure passive/active components and RF modules, test cables/adapters, etc.

Available options TTR506A Tektronix

CAL Standard Calibration 345
