AFG1062 Tektronix
General Instrumentation
60 MHz 2-channels Arbitrary/Function Generator + 200 MHz counter, USB interface on front panel.
| RENTAL | 95 € /week* | ||||
| SALE |
|
||||
Specifications : AFG1062 Tektronix
60 MHz 2-channels Arbitrary/Function Generator + 200 MHz counter :
- Amplitude level : 1 mVpp to 10 Vpp,
- 14 bit Vertical resolution,
- Frequency resolution : 1 µHz,
- Stability : 1 ppm,
- Arbitrary mode : 300 MS/s,
- 50 bulit-in waveforms, AM/FM/PM/FSK modulation, internal/external,
- Memory depth : Up to 8kPts,
- TFT LCD 3.95″ color display,
- Built-in frequency counter : 200 MHz, 6 digits,
- USB interface on front panel.
Download the technical documentation AFG1062 Tektronix
You need to be connected to consult and download the documentation
Create my account / Connexion

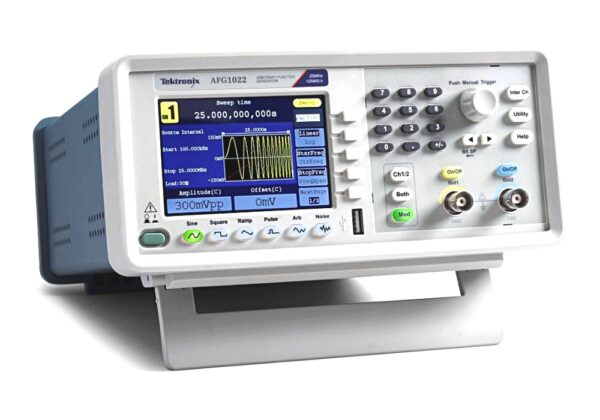

The AFG1000 Series Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio.
It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-p output amplitude.
The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation
needs in your experiment and test jobs.
The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
