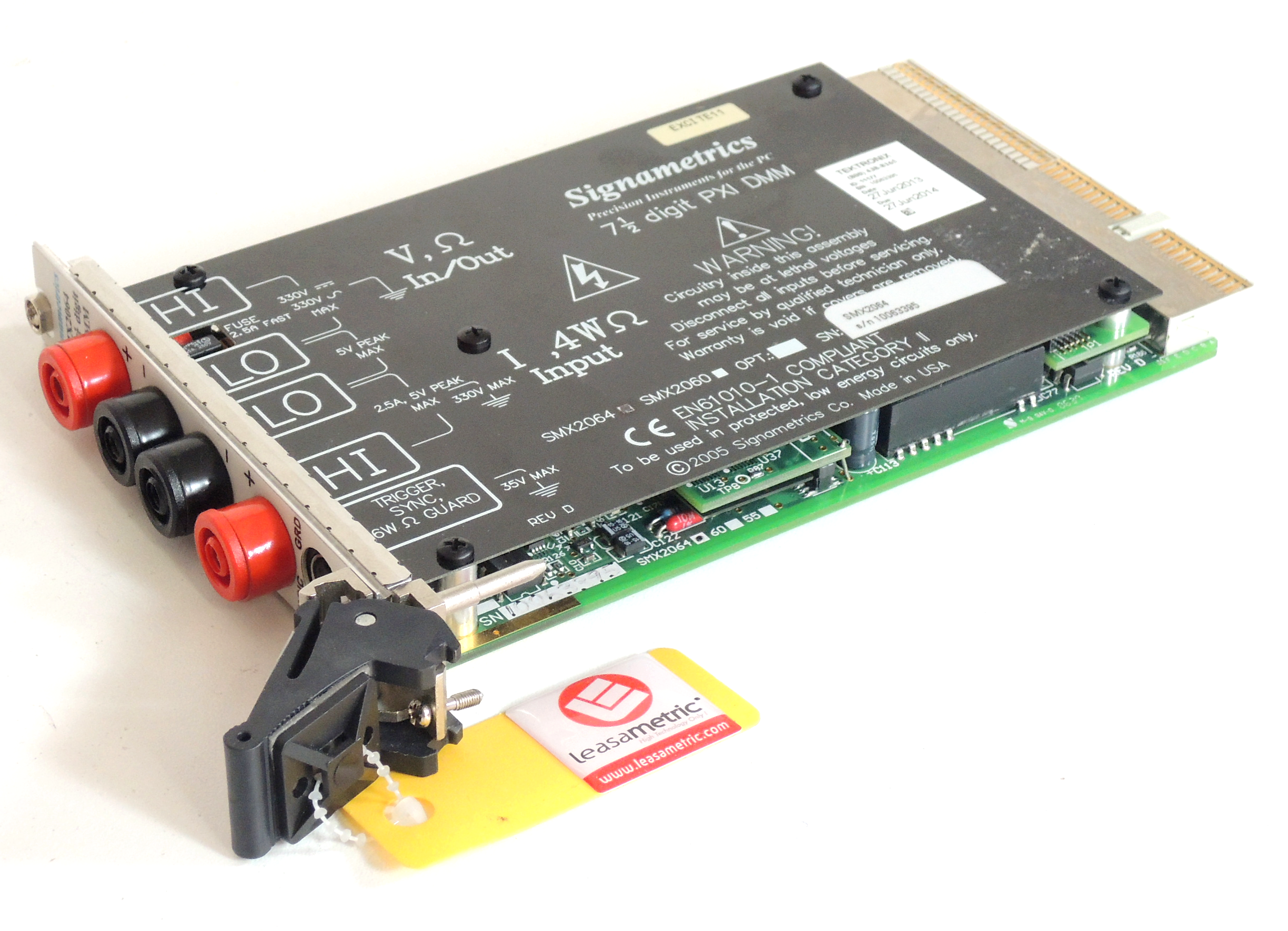

SMX2064 Signametrics

7-1/2 Digit amzaing Digital Multimeter (DMMs) :

• 7-1/2 Digit Resolution,
• + 24,000,000 count A/D,
• Zero Latency ; 0.5 rps to 20,000 rps,
• Programable Aperture & Interval,
• Switch Function & Range < 20ms,
• DC & AC Volts 10 nV to 330 V,
• DC Current 1 pA to 2.4 A,
• AC Current 10 µA to 2.4 A,
• True RMS ACV & ACI, Fast or Slow RMS,
• Crest Factor, Pk-Pk, +Pk, -Pk,
• Resistance: 1 mΩ to 10 GΩ, 2-Wire / 4-Wire / 6-Wire Guarded (ICT) / Offset Ω,
• 7 test currents incl. 10 mA,
• V/I limited,
• Capacitance : 1 pF-12 mF,
• Inductance : 20 nH – 3H,
• Temperature : RTDs / Thermocouples / Internal,
• Diode V/I Characteristics,
• Series RC networks,
• Leakage : 1 pA to 2.4 mA at 10V,
• Time & Frequency,
• Voltage/Current Event counter,
• Three DCV inputs,
• Extensive triggering,
• Source and Measure : 0 – to 10 V, DC & AC Voltage, DC Current to 0 to 12.5 mA, Srce-V/Msr-I, 10 V, 24 mA,
• Sync Output,
• Pulse & Duty Cycle generator,
• Component Handler interface,
• Universal Software driver Linux & Windows, Excel, Word, MatLab, LabView, LabWindows.
