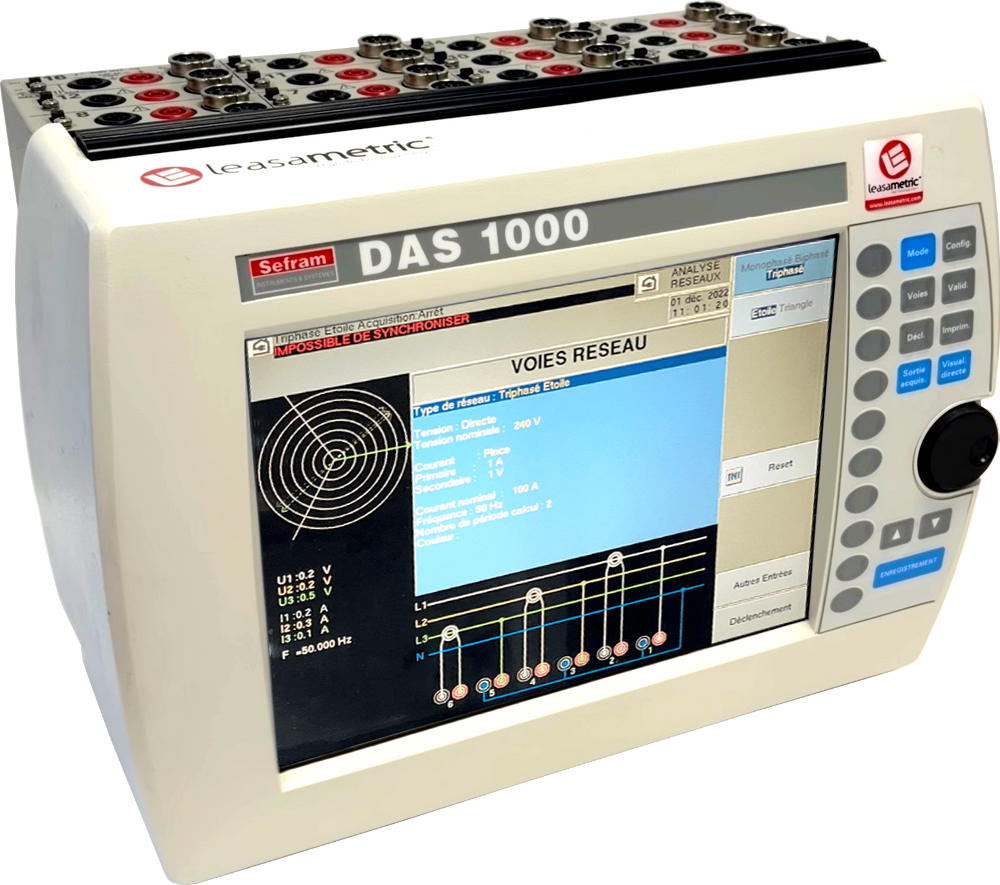

DAS1000/16 Sefram reNEWed by Leasametric
Plotters - Loggers
16-Ch Paperless recorder, Universal inputs, TFT 10’4” colour screen, RS-232 interface, Ethernet, Centronics, Software.
| SALE |
|
|||||||||||
Specifications : DAS1000/16 Sefram reNEWed by Leasametric
4, 8, 12 or 16 channels and 16 logical channels Paperless recorder :
- Universal inputs : VDC/ACRMS, Current, Thermocouples and Pt 100 sensors,
- 1 mV to 1000 Vdc, 200 mV to 500 Vac rms inputs,
- Power, Energy and Harmonics Analysis functions,
- Bandwidth : 30 kHz • Resolution : 14 bits • Max. sampling frequency: 250 kS/s per channel,
- High visibility waveforms displayed on a 10”4 color TFT LCD screen,
- Calculation functions and mathematical combinations of channels,
- Massive storage capacity (built-in SuperDisk™ 120MB disk drive, hard disk up to 10GB),
- Ethernet interface for direct connection to your network,
- Built-in RS-232 Interface, Paper on demand via the Centronics interface,
- IEC1010, CAT.III, 600 V,
- Flex.Pro software (Windows™ compatible) option.
Download the technical documentation DAS1000/16 Sefram reNEWed by Leasametric
You need to be connected to consult and download the documentation
Create my account / Connexion
A state-of-the-art recorder, it features 4, 8, 12 or 16 multi-range measurement channels, plus 16 logical inputs.
With a 30 kHz bandwidth and a 14 bits resolution, the DAS1000 is an excellent solution to capture transient.
Its large capacity memory allows long term recording of high speed data and off-line data processing on a computer.
The Ethernet interface allows you to connect and control your instrument from your PC.
