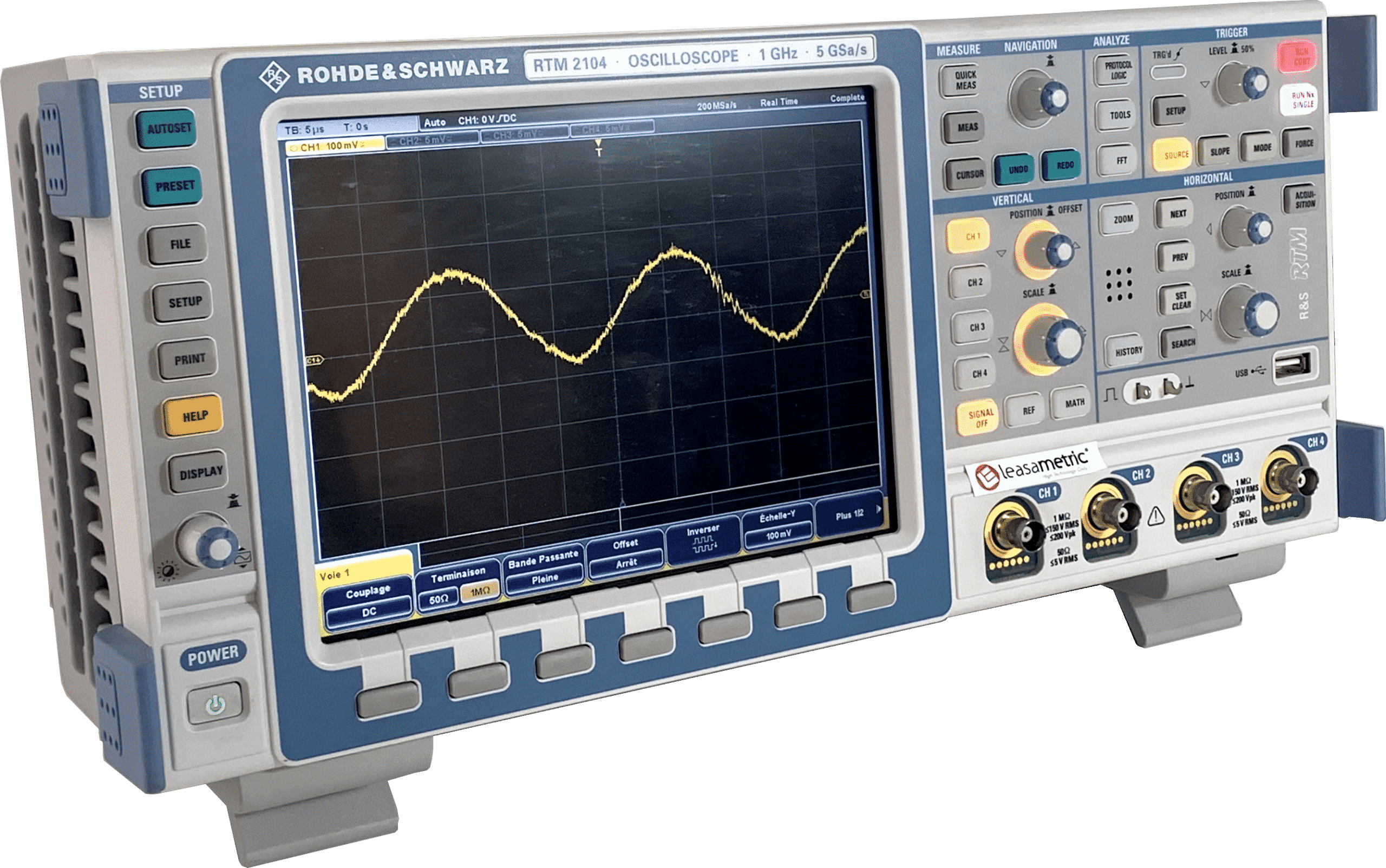

RTM2104 Rohde & Schwarz

All you need to know at a glance about the Rohde & Schwarz RTM2000 range 2 or 4 channels 200 MHz to 1 GHz :

• RTM2022 2 x 200 MHz,
• RTM2032 2 x 350 MHz,
• RTM2052 2 x 500 MHz,
• RTM2102 2 x 1 GHz,
• RTM2024 4 x 200 MHz,
• RTM2034 4 x 350 MHz,
• RTM2054 4 x 500 MHz,
• RTM2104 4 x 1GHz,

• Bandwidth 200 MHz, 350 MHz, 500 MHz, 1 GHz,
• Rise time 1 ns, 1.75 ns, 700 ps, ​​350 ps,
• Inputs 50 Ω ± 1.5%, 1 MΩ ± 1%,
• 8 bit resolution, up to 16 bit,
• Sampling 2.5 Gsample/s, 5 Gsample/s on half of the channels,
• Memory 10 Msample; 20 Msample on half of the channels, With the K15 460 Msample option,
• Fast automatic measurements: Peak, rise and fall rate, RMS values, time, frequency, Cursors, 31 automatic measurements,
• BUS decoder see options K1, K2, K3, K5, K6, K7, K15, K31, K32,
• Spectrum analyzer (option K18),
• Power analysis (option K31),
• Digital voltmeter (option K32),
• MSO option, 16-channel logic analyzer,
• Weight 4.1 Kg,
• 8.4″ XGA TFT display (1024 × 768 pixels),
• GP-IB interface (option B10),
• USB, LAN as standard.

Please contact us for ReNEWed® prices, prices for options and accessories such as probes.
