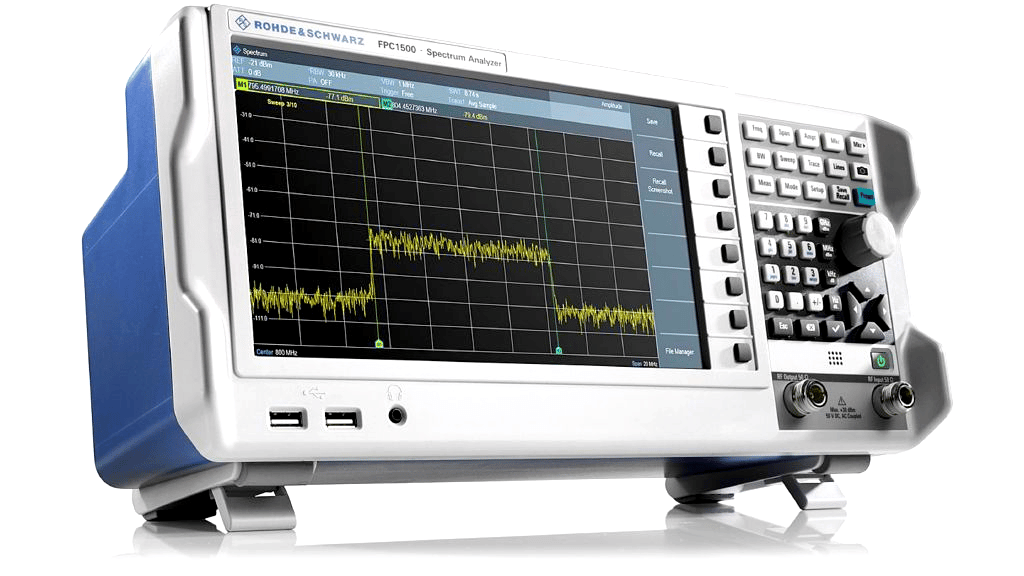

FPC1500 Rohde & Schwarz

Network Analysers < 6Ghz

Rohde & Schwarz FPC1500 Spectrum Analyzer + Vector Network (VNA) 5 KHz to 3 GHz.

RENTAL 238  /week*
SALE
Brand New Price Warranty 36 month 2 680

Set your quotation

Choice of delivery *

Options preference

Enter all the available options you want to add, separated by commas.

Quantity

Specifications : FPC1500 Rohde & Schwarz

Rohde & Schwarz FPC1500 Spectrum Analyzer + Vector Analyser (VNA) :

  • Frequencies from 5 kHz to 1 GHz upgradable up to 3 GHz,
  • Integrated tracking generator,
  • Better resolution 1 Hz,
  • DANL of -150 dBm (-165 dBm with the preamplifier on),
  • Maximum input power +30dBm (1W),
  • 10.1 inch screen in WXGA (1366 × 768 pixels),
  • Start-up time of only 15 seconds,
  • Optional EMI emissions test software,
  • Wi-Fi function (optional), supported by built-in software for remote measurement and control,
  • Remote control via computer or tablet/smartphone. PC software and iOS/Android apps provided,
  • See also model FPC1000, spectrum analyzer.



Rental price given for the 3 GHz version with options B22, K42, B200, K7, K55.

Available options FPC1500 Rohde & Schwarz

CAL Standard Calibration 345
B2 Frequency upgrade 1 GHz to 2 GHz 590
B3 Frequency upgrade 1 GHz to 3 GHz 1 430
B22 Préamplifier 350
B200 Wi-Fi Connexion 290
K7 Modulation analysis (AM, FM, ASK, FSK) 690
K42 Vector network analysis 750
K43 Mode Receiver 490
K55 Advanced measurements (ACLR, Spur, TOI, spectrogramme) 490
ELEMI-EP EMI emissions test software 3 230

Download the technical documentation FPC1500 Rohde & Schwarz

You need to be connected to consult and download the documentation

Exceptional quality and innovation should not be synonymous with high prices.

The R&S®FPC1500 spectrum + vector network analyzer delivers unexpected performance at an incredibly low price. It was developed in Germany and designed to the same quality standards as high-end devices.

All options are upgradable by Key code in order to extend the analysis band up to 3 GHz.

Software is available for EMC pre-qualification.
