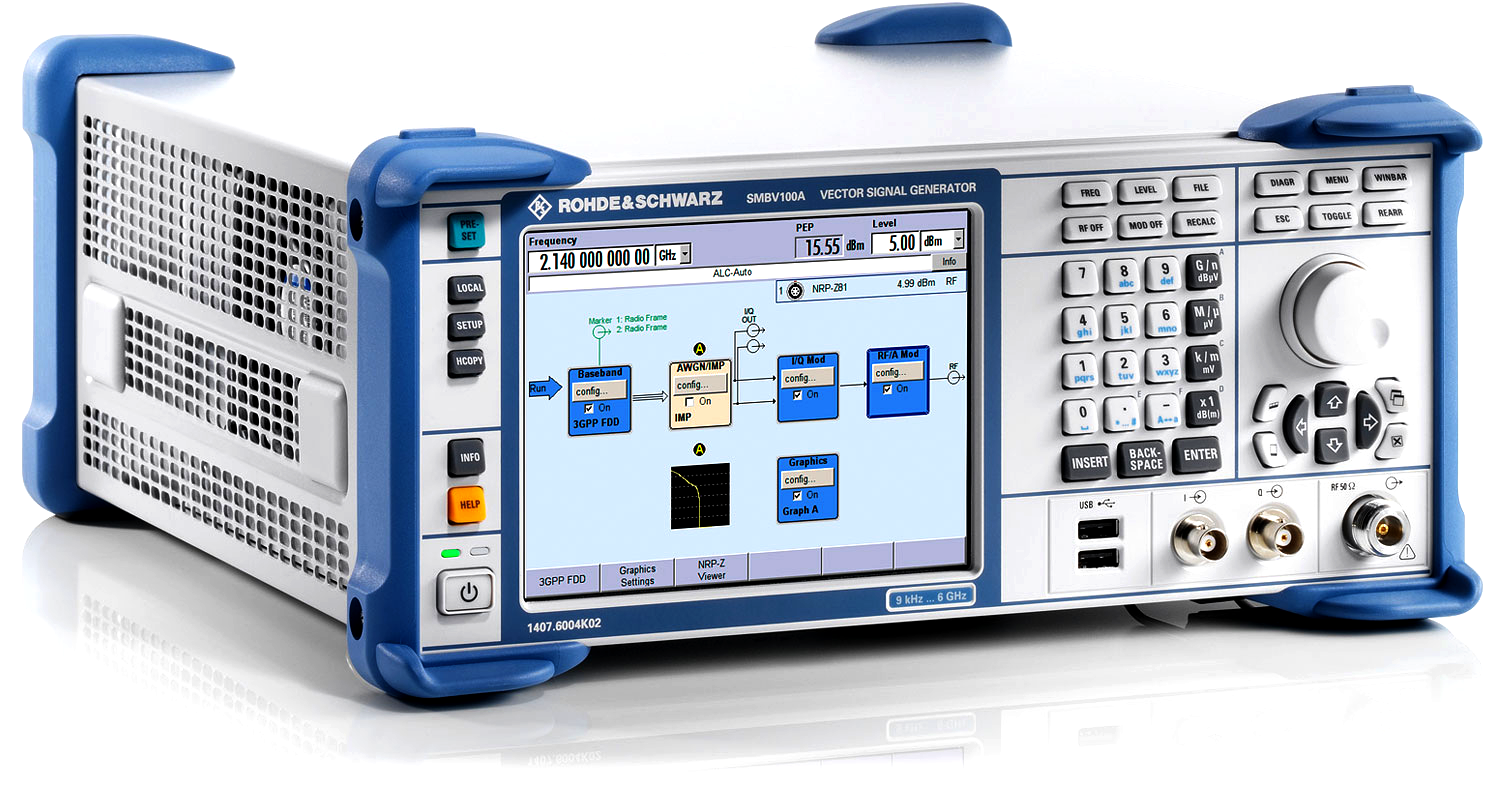

SMBV100A Rohde & Schwarz
RF Signal Sources
Vector Signal Generator 9 kHz to 3.2 GHz or 6 GHz, USB, LAN GP-IB interfaces.
| RENTAL | 295 € /week* | ||||
| SALE |
|
||||
Specifications : SMBV100A Rohde & Schwarz
Vector Signal Generator :
- 9 kHz to 3.2 GHz or 6 GHz,
- High output power >+18 dBm,
- Small level uncertainty <0.5 dB,
- Low phase noise <-122 dBc/Hz,
- Fast switching time <3 ms,
- Wide RF signal bandwidth of up to 120 MHz with internal signal generation,
- Maximum RF bandwidth of I/Q modulator exceeds 500 MHz,
- Analog modulation: AM, FM, Phase, I/Q modulation,
- USB, LAN GP-IB interfaces.
Download the technical documentation SMBV100A Rohde & Schwarz
You need to be connected to consult and download the documentation
Create my account / Connexion
The R&S®SMBV100A offers excellent RF performance along with very high output level and short setting times.
At the same time, the R&S®SMBV100A can be equipped with an internal baseband generator to allow generation of a number of digital standards (e.g. HSPA+, LTE, WLAN IEEE 802.11ac).
The wide frequency range from 9 kHz to 6 GHz covers all of the important bands for digital modulation.
