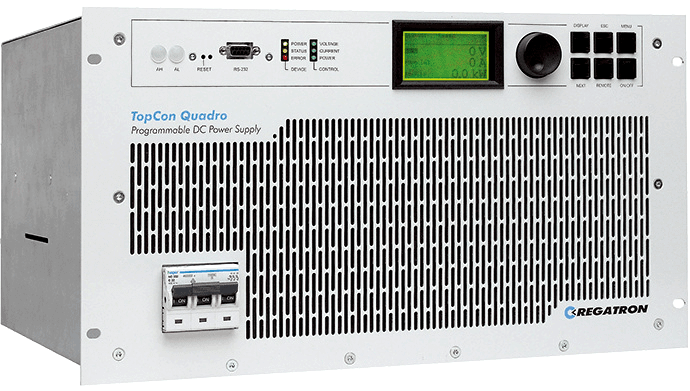

TC.P.10.500.400 REGATRON

10 KW DC Power Supply serie :

• Voltage range from 50 to 1,000 VDC at power categories of 10, 16, 20 and 32 kW,
• Line input 400 VAC,
• CV/CC/CP-Operation, adjustable internal resistance simulation,
• Full digital regulation : high accuracy, reproducibility and long-term stability,
• Multi-unit Operation : Parallel, Series, Multiload and Matrix,
• Modular concept for easy power increase,
• Standard with RS232 Interface and user software TopControl.

Options :

• ersatile TopCon Function Generating Engine TFE allows for a nearly unlimited programming of set values,
• AAP-Operation : Application area programming; allows parametric programming of the output as function of the input variables,
• Graphical system analysis using the SCOPE functionality : 4 chanel scope with acces to all system variables in high resolution,
• Interfaces: IEEE488.2, Ethernet, CANopen, ProfiBus, RS-422
