L2-16B PMM
RF Accessories
16 A LISN (Line Impedance Stabilization Network), 9 kHz – 30 MHz.
| RENTAL | 84 € /week* | |||||||
| SALE |
|
|||||||
Specifications : L2-16B PMM
LISN (Line Impedance Stabilization Network) :
- Maximum current 16 A,
- Maximum voltage 250 Vac to 350 Vdc,
- Frequency range 9 KHz to 30 MHz,
- Impedance 50 Ω,
- Standards CISPR 16-1-2, VDE 0876, FCC part 15,
- BNC connector, 16 A SCHUKO,
- Weight 5,5 Kg.
Download the technical documentation L2-16B PMM
You need to be connected to consult and download the documentation
Create my account / Connexion

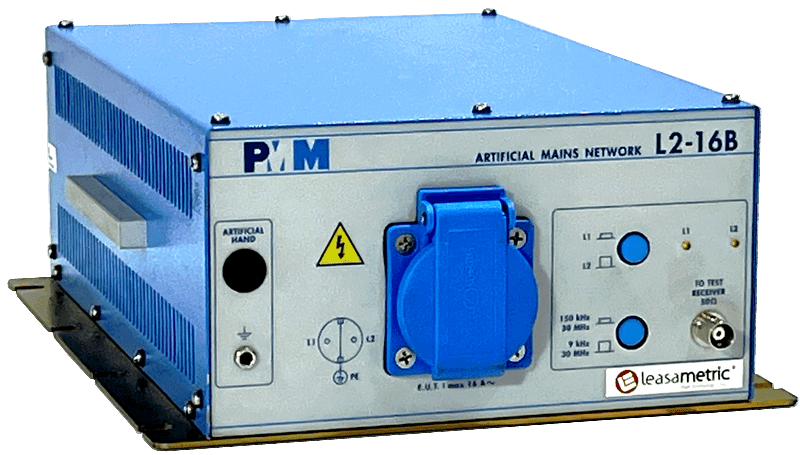

The Narda PMM L2-16B is a LISN (Line Impedance Stabilization Network) that is capable of generating a maximum output current of 16 A.
This LISN can be used to measure the noise conducted on the power line of single phase AC and DC powered devices.
The L2-16B is designed to perform EMC pre-compliance testing in the frequency range of 9 kHz to 30 MHz.
More accurate measurements can also be made by adjusting the frequency range from 150 kHz to 30 MHz.
