NHT310F Microrad

NHT 310F Microrad, portable-electromagnetic-field-meter :

• Ideal for mobile applications,
• Unbeatable price / performance ratio,
• Touch screen,
• Capture and  display of pulse signals up to 500 ns (depending probe),
• Automatic calculation of the pulse width and duty cycle,
• Removable memory,
• Frequencies from 0 Hz to 40 GHz (depending on the probe),
• Simultanieous display of the Electric and Magnetic Induction fields,
• Over 24 hours of autonomy,
• Remote Wi-Fi connection with OS Windows and Android application.



Magnetic, Induction and Electric Field Probes :

• Electric Probe 01E 100 kHz to 6,5 GHz, 0,2 – 350 V/m,
• Electric Probe 02E 200 kHz to 40 MHz 2 – 1 200 V/m,
• Electric Probe 03E 3 MHz to 18 GHz 0,8 – 350 V/m,
• Electric Probe 04E 3 MHz to 40 GHz et 0,8 – 350 V/m,
• Magnetic Probe 02H 300 kHz to 30 MHz et 0,016 – 16 A/m,

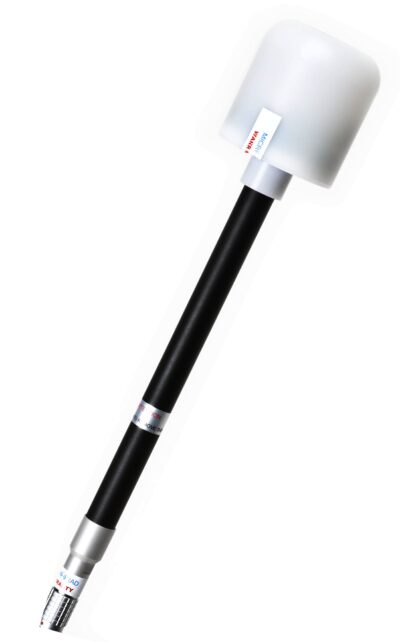

• Magnetic Induction Probe 10B 5 Hz to 400 kHz, 0,1 µT – 1 mT,
• Electric Probe 11E 5 Hz to 400 kHz, 20 V/m – 20 kV/m,
• Magnetic Induction Probe 10H DC to 1 kHz, 30 µT – 1 mT
• Magnetic Induction Probe 20H DC to 1 kHz and 1 mT – 8 T,
• Magnetic Induction Probe 30H DC to 1 kHz and 200 µT – 600 mT,
• Magnetic Induction Probe 20B 5 Hz to 20 kHz and 0,3 µT – 16 mT,
• Magnetic Induction Probe 30B 5 Hz to 400 kHz and 0,3 µT – 16 mT
• Electric field & Magnetic Induction probe 33S DC to 1 MHz, 0,1 µT – 15 mT, 1 V/m – 100 kV/m.

Rental price for NHT310F + Probe, Please Call.
