3940 Krohn-Hite reNEWed by Leasametric
Audio Analysers and Generators
3 Hz to 2 MHz Programmable, dual channel, Butterworth/Bessel filter, IEEE-488 remote control.
| RENTAL | 74 € /week* | |||||||
| SALE |
|
|||||||
Specifications : 3940 Krohn-Hite reNEWed by Leasametric
Programmable, dual channel, Butterworth/Bessel filter :
- 2 Independent Filter Channels,
- 3 Hz to 2 MHz,
- 1 Band-Pass/Band-Reject Channel,
- Attenuation : 24dB/Octave (4-Pole),
- Filter Modes : Low-Pass and High-Pass,
- Response : Butterworth and Bessel,
- Pre-Filter (Input) Gain : 0 dB and 20 dB,
- Post-Filter (Output) Gain : 0 dB and 20 dB
- Remote Control : IEEE-488.
Download the technical documentation 3940 Krohn-Hite reNEWed by Leasametric

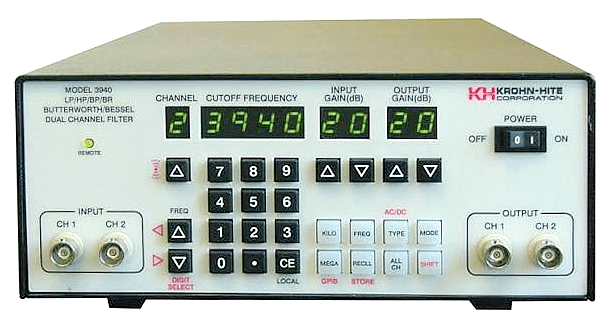

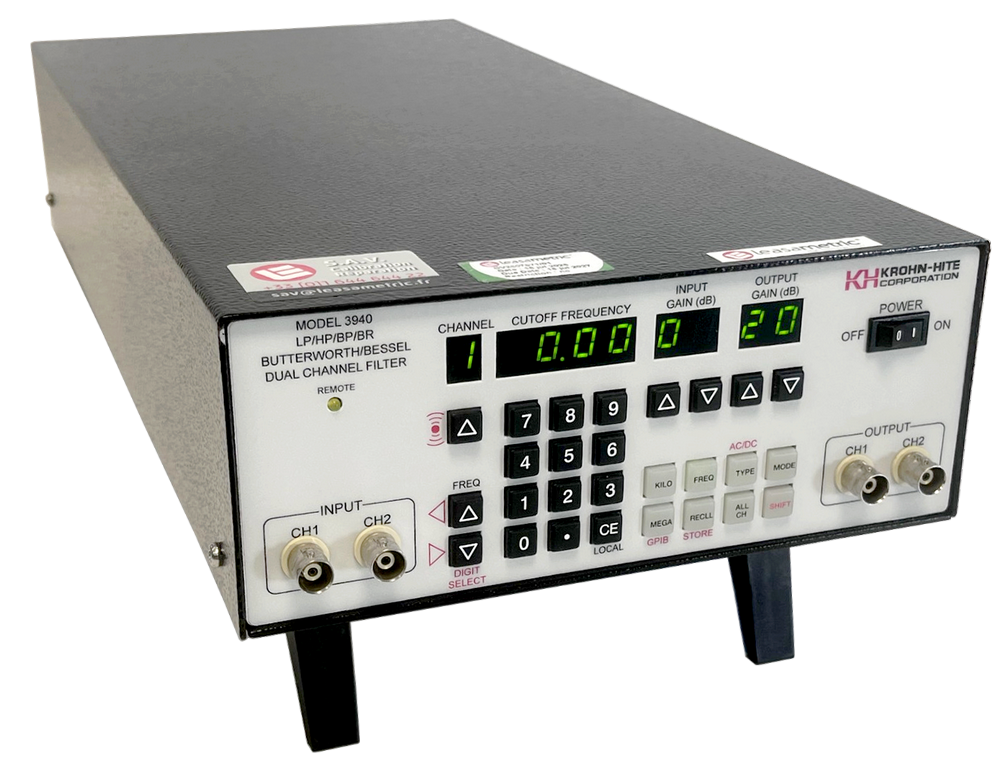

The Krohn-Hite Model 3940 programmable, dual channel, Butterworth/Bessel filter offers a programmable or benchtop filter covering a cutoff frequency range from 3 Hz to 2 MHz.
It has a frequency response characteristic of maximally flat (Butterworth) for clean filtering in the frequency domain, or linear phase (Bessel) to provide pulse signal filtering.
The passband gain is unity, and the attenuation slope is 24 dB/octave per channel.
The 3940 will accept input signals of ±4.5 V peak and provides input and output gains of 0 dB or 20 dB which can be selected via the front panel keyboard or over the GP-IB bus.
