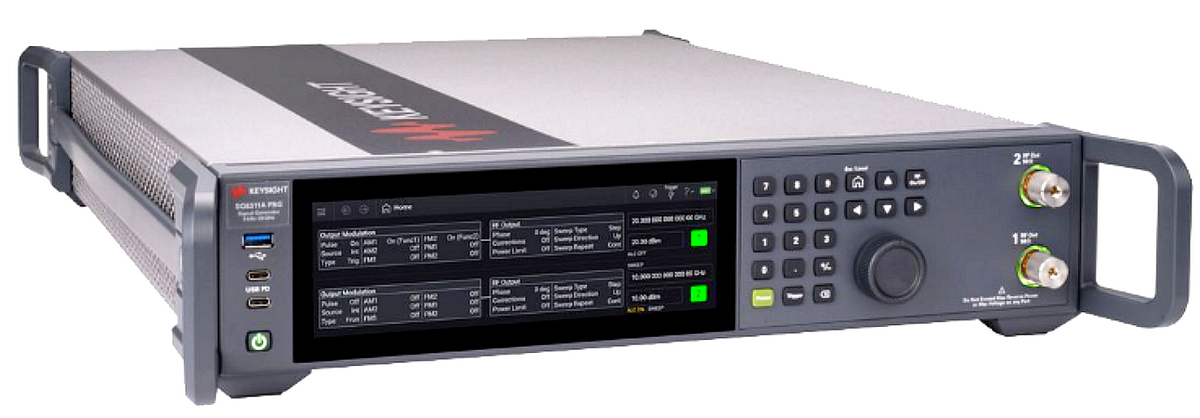

XG7 SG6311A Keysight
Signal Generators
9 kHz to 20 GHz 2-Ch Analog Signal Generator, complete modulations (option), USB Type A (2 ports), USB Type B (1 port), GP-IB, LAN interfaces.
Specifications : XG7 SG6311A Keysight
Pro XG7 2-Ch Analog Signal Generator :
- Phase noise measured at 10 GHz with 20 kHz offset : -153 dBc/Hz,
- Typical broadband noise floor measured at 10 GHz : -166 dBc/Hz,
- +22 dBm High, calibrated output power for demanding RF tests,
- Frequency from 9 kHz to 20 GHz for RF measurements across defense systems, satellite, and wireless receiver workflows,
- Multifunction generator internal modulation source (Option 303),
- Internal pulse generator (Option PMR),
- Pulse train generator (Option 320),
- Rack space Only 2U,
- Removeable Memory,
- USB Type A (2 ports), USB Type B (1 port), GP-IB, LAN interfaces,
- Display Size : 190.08 mm W x 59.4 mm H, 199.2 mm diagonal (7.48” W x 2.34” H, 7.84” diagonal), 1280 x 400 resolution.
Download the technical documentation XG7 SG6311A Keysight
You need to be connected to consult and download the documentation
Create my account / Connexion
The SG6311A PSG reveals true device-under-test performance with metrology-grade signal purity, exceptionally low noise, and high, calibrated output power.
Its compact dual-channel design and compatibility with existing test environments help teams expand test capacity, accelerate deployment, and scale advanced test setups with greater confidence and efficiency.
The result is trusted measurements, clearer insight, and faster progress from initial evaluation through deployment.
