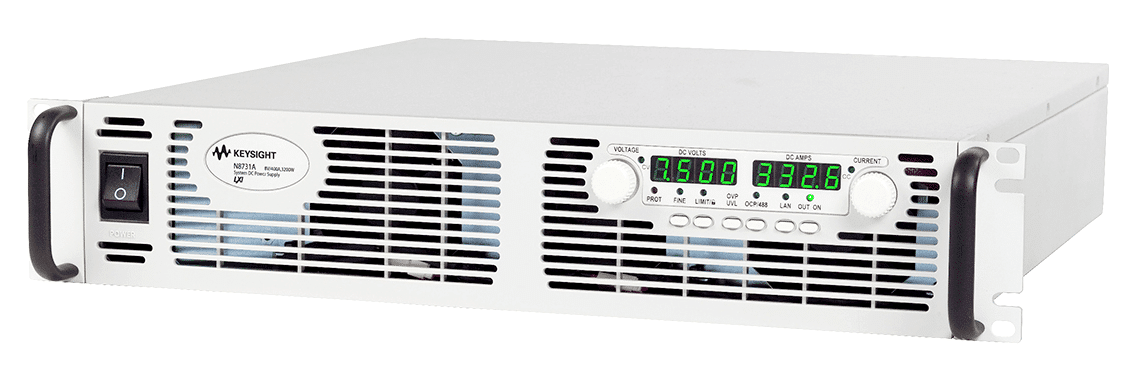

N8755A Keysight
DC Power Supplies
Programmable DC Power Supply, 170 V 30 A, 5100 W.
| RENTAL | 325 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : N8755A Keysight
N8755A, programmable power supply :
- 0 to 170V,
- 30 A maximum,
- Power 5100W,
- Noise ripple 10 mV rms,
- Dimensions 2 U 19 inches,
- Standard interfaces: LAN (LXI-Core), USB & GPIB,
- Connectable in series or parallel,
- Mains supply Single-phase 230 V or three-phase 400 V (optional).
Other power supplies available in the N8700 range :
N8731A DC 3200 W programmable power supply (8 V/400 A).
N8732A DC 3300 W programmable power supply (10 V/330 A).
N8733A DC 3300 W programmable power supply (15 V/220 A).
N8734A DC 3300 W programmable power supply (20 V/165 A).
N8735A DC 3300 W programmable power supply (30 V/110 A).
N8736A DC 3400 W programmable power supply (40 V/85 A).
N8737A DC 3300 W programmable power supply (60 V/55 A).
N8738A DC 3360 W programmable power supply (80 V/42 A) .
N8739A DC 3300 W Programmable Power Supply (100 V/33 A).
N8740A DC 3300 W Programmable power supply (150 V/22 A).
N8741A DC 3300 W programmable power supply (300 V/11 A).
N8742A DC 3300 W programmable power supply (600 V/5.5 A).
N8754A DC 5000 W programmable power supply (20 V/250 A).
N8756A DC 5000 W programmable power supply (40 V/125 A).
N8757A DC 5100 W programmable power supply (60 V/85 A).
N8758A DC 5200 W programmable power supply (80 V/65 A).
N8759A DC 5000W Programmable Power Supply (100 V/50 A).
N8760A DC 5100 W programmable power supply (150 V/34 A).
N8761A DC 5100 W programmable power supply (300 V/17 A).
N8762A DC 5100W Programmable Power Supply (600 V/8.5 A).
Download the technical documentation N8755A Keysight
The N8700 series power supplies deliver high current (up to 400A) and 600V maximum with low noise in a compact 2U.
Airflow moves front to back, so no additional space is required above or below the power supply in your automated test equipment (ATE) rack. Rack mounting is thus simplified.
The 21 power supplies in this series benefit from a low noise output (8 to 120 mV rms), and benefit from protections against overheating, overcurrent, overvoltage and undervoltage.
You can connect up to 4 units in parallel for higher current.
These power supplies are available for rental or ReNEWed® with better prices and shorter delivery times. Please contact us for more information.
