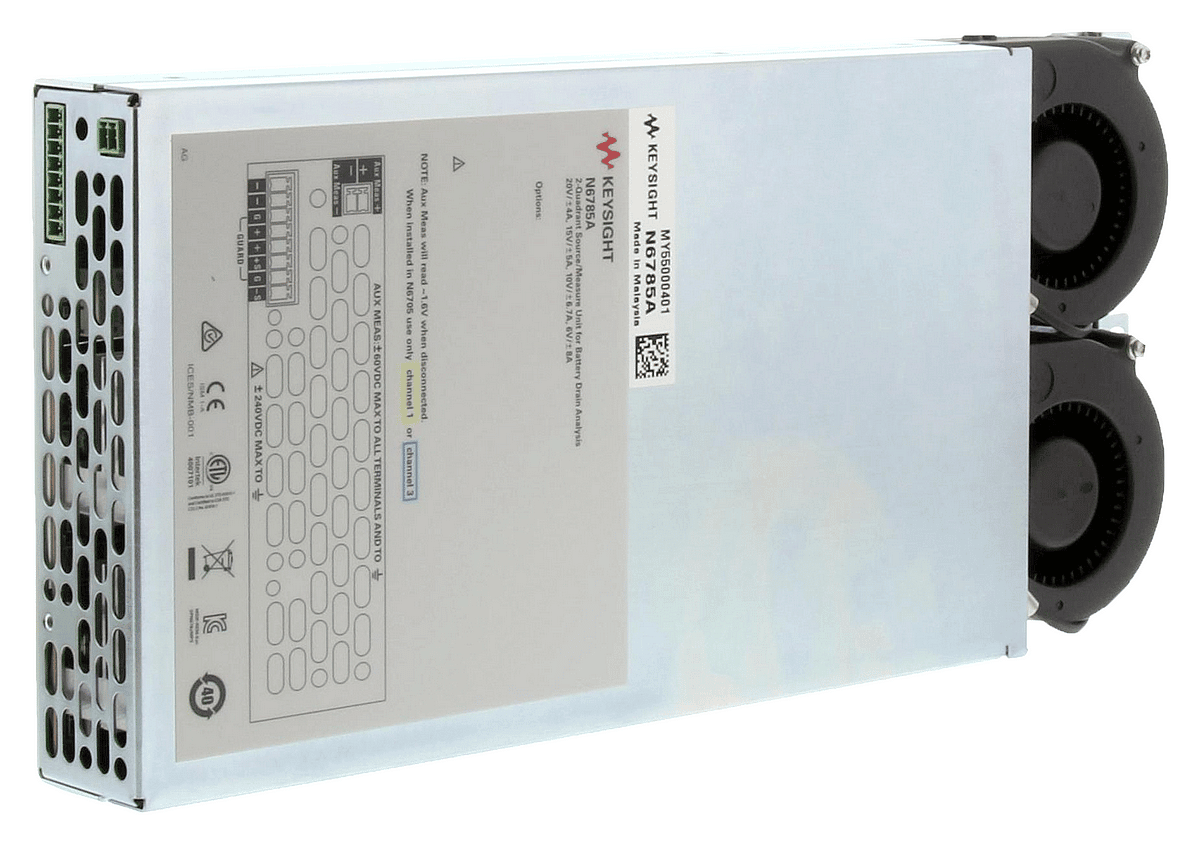

N6786A Keysight

Source/Measure Unit for Functional Test, Multiple Ranges, 80 W, Double-wide :

• Characterize your device’s off-, sleep-, and transmit-mode current in one pass and one picture with Keysight’s exclusive patented seamless measurement ranging technology – no need to make multiple measurement sweeps.
• Perform battery rundown tests and characterize how your device performs with an actual battery with the SMU’s ammeter (zero-burden current shunt) mode.

Output ratings:

• Voltage: 20 V / 15 V / 10 V / 6 V
• Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
• Power: Up to 80 W

Output voltage ripple & noise (PARD) from 20 Hz – 20 MHz :

• CV peak-to-peak: 15 mV
• CVrms: 1.5 mV

Programming accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program) :

• Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV,
• Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA.

Measurement accuracy (at 23°C ± 5°C) :

• Voltage, 20 V range: 0.025% 1.8 mV,
• Current, 8 A range: 0.04% + 1.5 mA,
• Current, 100 mA range: 0.025% + 10 µA,
• Current, 1 mA range: 0.025% + 100 nA.
