M9019A Keysight
PXI-VXI

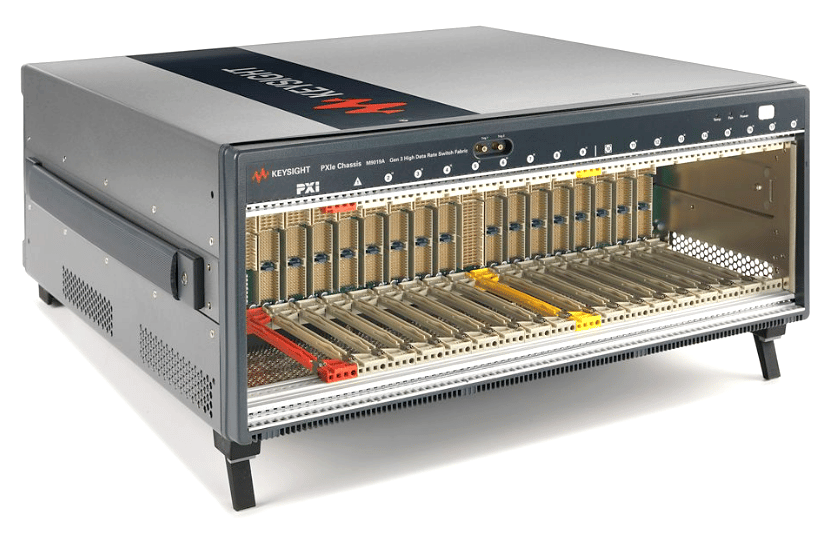

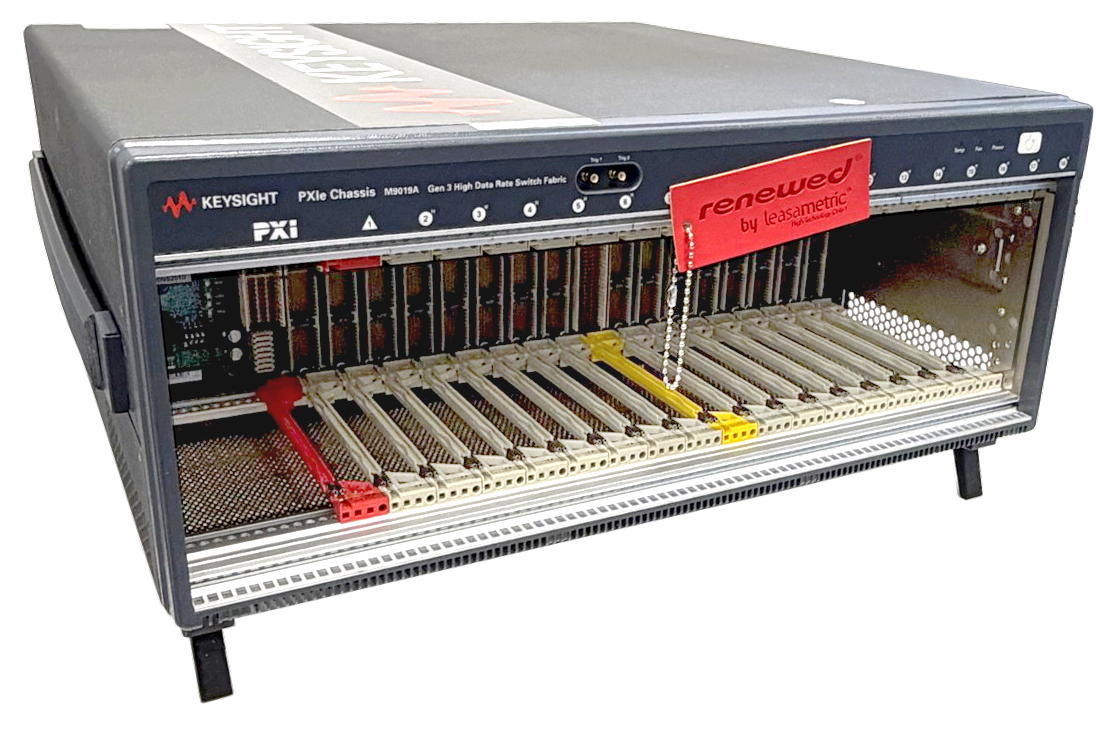

M9019A 18 total slots PXI Chassis.
| RENTAL | 350 € /week* | ||||
| SALE |
|
||||
Specifications : M9019A Keysight
M9019A PXI Chassis :
- 18 total slots : 16 PXIe hybrid slots, 1 timing/PXIe slot, and 1 PXIe system slot,
- Multi-chassis power-sequencing and front panel external trigger inputs/outputs,
- 800 W useable DC power (220-240 V input) and 42 W/slot cooling,
- Ultra-high performance Gen 3 PCIe switching with a two-link (x8, x16) system slot and x8 links to the hybrid/timing slots,
- High data bandwidth (maximum 24 GB/s system and 8 GB/s slot-to-slot),
- Innovative cooling design that allows chassis to fit into 4U of rack space in most cases.
Download the technical documentation M9019A Keysight
You need to be connected to consult and download the documentation
Create my account / Connexion
The Keysight Technologies, Inc. M9018B and M9019A PXIe 18-slot chassis deliver the flexibility,compatibility, and performance required for demanding applications. With 16 PXIe hybrid slots, they give the system designer more flexibility to mix and match the number and location of PXIe and hybridcompatible modules.
Choose between the high-performance PCIe® Gen 2 and ultra-high performance, Gen 3 models to meet your application’s requirements. Both models include the same innovative cooling design which allows the chassis to fit into 4U of rack space. They are also designed for easy integration into large systems containing multiple PXIe chassis and other non-PXI instrumentation.
