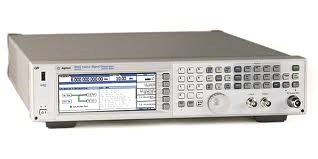

N5182B-506 Keysight
RF Signal Sources
MXG digital + analog signal generator 9 kHz to 6 GHz, Supports a large number of digital modulations, internal or external, GPIB IEEE-488.2, 1987 with listen and talk LAN 1000BaseT LAN interface, LXI class C compliant USB Version 2. 0.
| RENTAL | 1 490 € /week* | |||||||
| SALE |
|
|||||||
Specifications : N5182B-506 Keysight
MXG series, digital signal generator :
- 9 kHz to 6 GHz,
- Supports a large number of digital modulations, internal or external,
- Real-time baseband generator (option 660),
- Cellular: LTE-FDD, LTE-TDD, HSPA+/W-CDMA, GSM/EDGE, cdma2000®,
- Real-time navigation: GPS, GLONASS, Galileo,
- Real-time video applications: DVB-T/T2/H/S/S2/C/J .83 Annex A/C, ISDB-T/,
- AM/FM/PHASE/PULSE modulations (UNT or 303 option),
- Narrow pulse modulation (UNW option),
- Pulse train generator (320 + UNW options),
- AWGN (Option 403),
- PSK: BPSK, QPSK, OQPSK, π/4DQPSK, gray coded and unbalanced QPSK, 8PSK, 16PSK, D8PSK,
- QAM : 4, 16, 32, 64, 128, 256, 1024 (and 89600 VSA mappings),
- FSK: selectable 2,4,8, 16, C4FM,
- MSK: 0 to 100°,
- ASK: 0 to 100%,
- Arb Mode client modulations (Option 431),
- Phase noise -146 dBc/Hz (@20 kHz offset @1 GHz),
- Output level -127 to +24 dBm with mechanical attenuator,
- GPIB IEEE-488.2, 1987 with listen and talk LAN 1000BaseT LAN interface, LXI class C compliant USB Version 2.0.
Download the technical documentation N5182B-506 Keysight
You need to be connected to consult and download the documentation
Create my account / Connexion
N5182B MXG X-Series RF vector high performance signal generators are fine-tuned to be your “golden transmitter” in R&D with 9 kHz to 6 GHz frequency coverage.
Simulate real-world signals with real-time capabilities with Signal Studio software.
The prices of this generator are given as an indication without the options installed on the devices offered for sale or rental.
To obtain a preferential price with the options installed or desired, please contact us.
