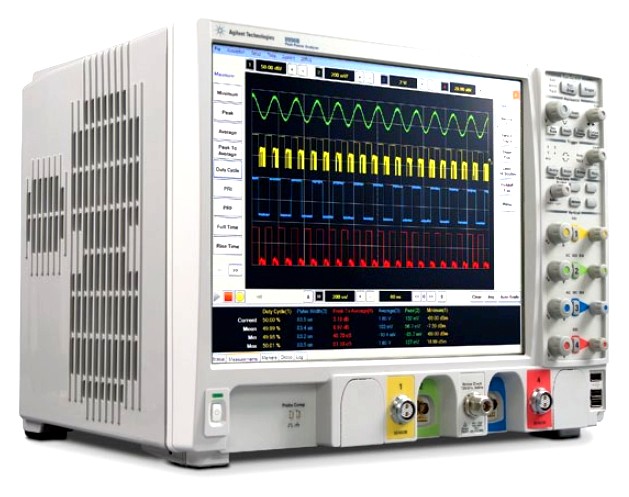

8990B Keysight / Agilent

Peak Power Analyzer :

• Frequency range : 50 MHz to 40 GHz (sensor dependant),
• Dynamic range of -35 to +20 dBm,
• Fast System Rise/ Fall time of 5 ns‚
• Time base : 2 ns to 100 msec/div in 1-2-5 sequence or any arbitrary scaling,
• 100 MSa/ sec continuous sampling with >1500 readings/ sec,
• 160 MHz video bandwidth,
• 4 channels (two RF and two video) and compatible with U2000 Series power sensors connected using the USB hosts‚
• Provide 15 Pulse Characterization Measurement with automated pulse delay measurement between channels‚ 20X zooming capability with dual Screen Zoom Window‚
• Internal Zeroing and Calibration,
• RJ-45 connector, supports 10Base-T, 100Base-T and 1000Base-T. Enables web-enabled remote control,
• USB and GP-IB remote control,
• 15-inch color XGA TFT-LCD with touchscreen capability display,
• Weight : < 16 kg (net).
