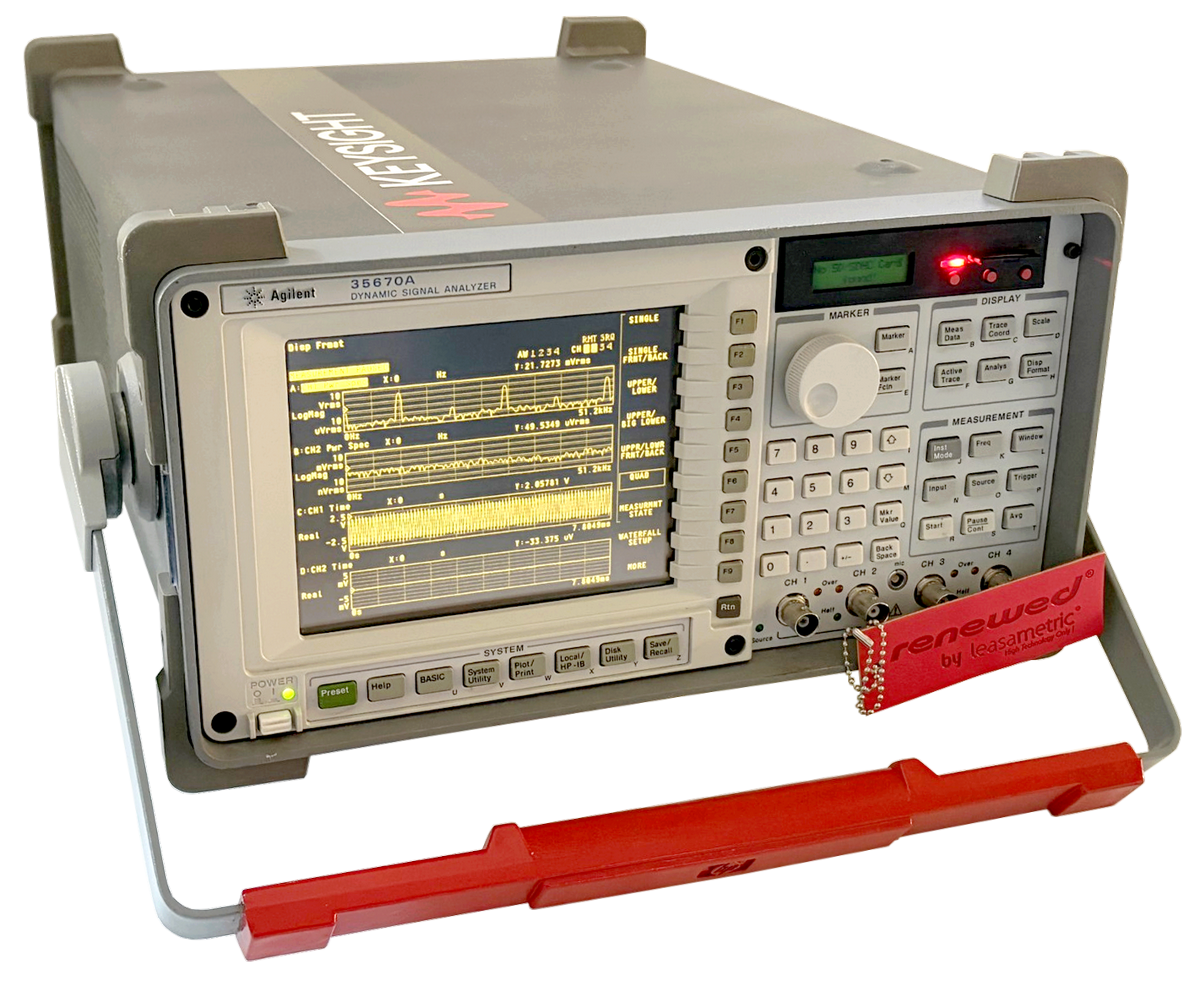

35670A Keysight / Agilent
Audio Analysers and Generators
Dynamic Analyser, FFT 2 to 4 Channels, 0-102,4 KHz, GP-IB (IEEE-488.1 and 488.2), Parallel, RS-232C Serial.
| RENTAL | 407 € /week* | |||||||
| SALE |
|
|||||||
Specifications : 35670A Keysight / Agilent
Audio dynamics analyzer, FFT 2 to 4 channels :
- Portable can run on external DCpower,
- 1600 line resolution, 16 bit ADC/90 dB dynamic range,
- Accuracy ±0.15dB,
- Bandwidth : 0-102.4 KHz 1 Channel, 51.2 kHz 2 Channels, 25.6 kHz 4-Ch,
- Acquisition speed > 6 Ms/s,
- 3”1/2 or SD card reader (see photo),
- Internal source: Random, Burst, Periodic chirp, Burst chirp, pink noise, sine, frequency sweep (option 1D2), arbitrary waveforms (option 1D4),
- GP-IB (IEEE-488.1 and 488.2), parallel port, RS-232C,
- Leasametric technical support guaranteed for 10 years.
Download the technical documentation 35670A Keysight / Agilent
You need to be connected to consult and download the documentation
Create my account / Connexion
The Keysight 35670A is a versatile FFT analyzer with a built-in source for general spectrum and network analysis and for octave, order, and correlation analysis.
The built-in source with optional analysis features optimizes the instrument for analyzing and troubleshooting noise, vibration, and acoustic problems, evaluating and solving rotating machinery problems, and characterizing control systems parameters.
This analyzer Agilent / Keysight 35670A is still sold reNEWed® by LEASAMETRIC which provides technical support.
