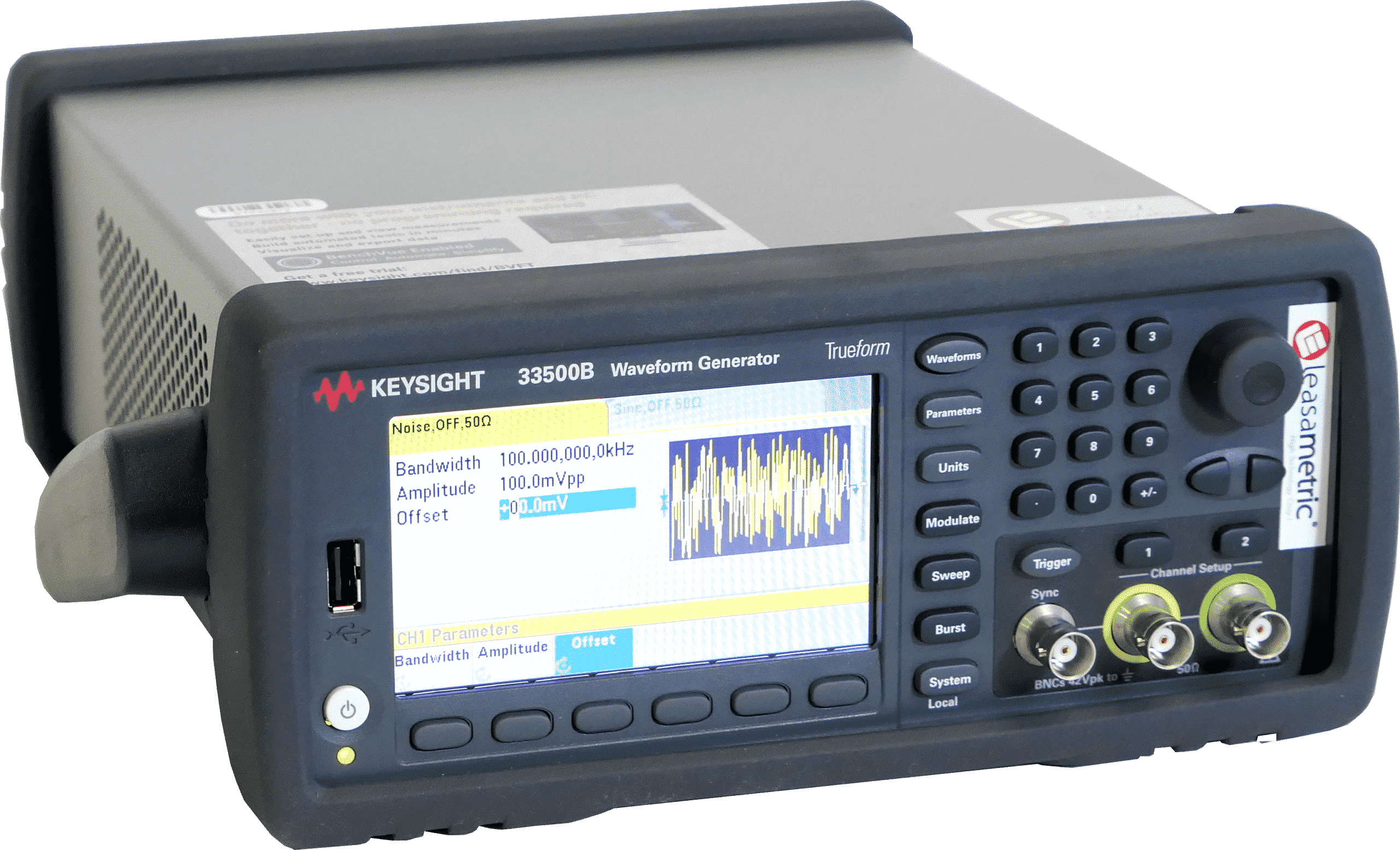

33520B Keysight
General Instrumentation
Function generator 1 µhz to 30 MHz, 2 outputs, wide color screen TFT 4.3″, USB 2.0 for acces Memory, LXI- C (11.3), GP-IB/IEEE.
| RENTAL | 113 € /week* | ||||
| SALE |
|
||||
Specifications : 33520B Keysight
2-Channels 30 MHz function generator :
- TrueForm technology® for a pure signal,
- Optional arbitrary signal generator,
- Amplitude modulations AM, FM, PM, FSK, BPSK, PWM,
- Frequency 1 µHz to 20 MHz,
- Jitter < 40 ps,
- HST < 0.04%,
- 250 Ms/s,
- 16-bit resolution,
- 1 Ms of memory by way,
- Exit level 1 mVpp to 10 Vpp in 50 Ω, 20 Vpp open circuit,
- Large color screen TFT 4.3″,
- USB 2.0 for fast acces Memory, LXI-C (rev1.3), GP-IB/IEEE.
