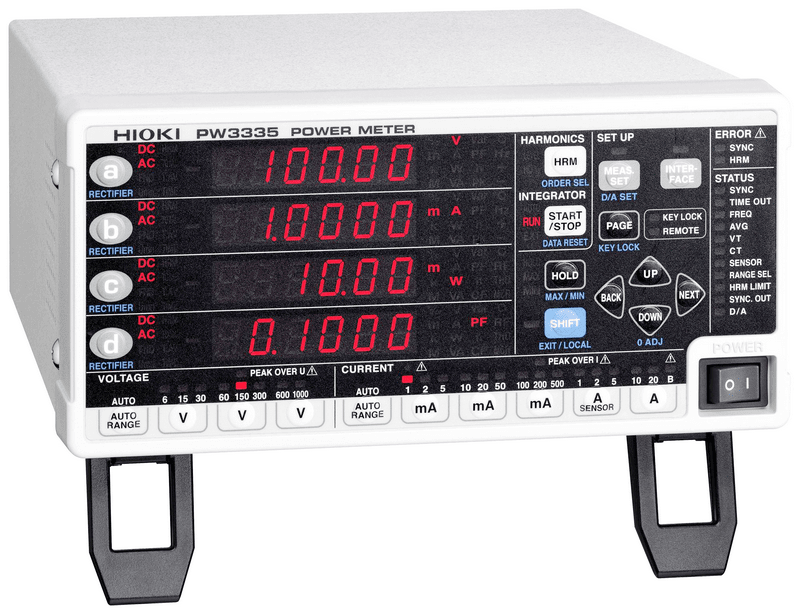

PW3335 Hioki

Precision wattmeter for IEC62301 conformity test :

• High precision: ±0.1%,
• Wide measuring range from 1 mA to 20 A, 30 A continuous input,
• Wide frequency band range from DC/0.1 Hz to 100 kHz,
• Measurement of harmonic and energy consumption in standby mode according to IEC62301 conformity test,
• Achieves superior accuracy even with low power factor for no-load testing of transformers and motors,
• Synchronized control using up to 8 instruments,
• Integrated external input probe to measure up to 5000A AC (Model PW3335-03 and PW3335-04 only).

Choice of models :

PW3335 : standard model, with LAN, RS-232C interfaces
PW3335-01 : with LAN interfaces, GP-IB
PW3335-02 : with LAN interfaces, RS-232C, D/A output
PW3335-03 : with LAN, RS-232C interfaces, external current probe
PW3335-04 : with LAN, RS-232C, GP-IB interfaces, D/A output, external current probe
