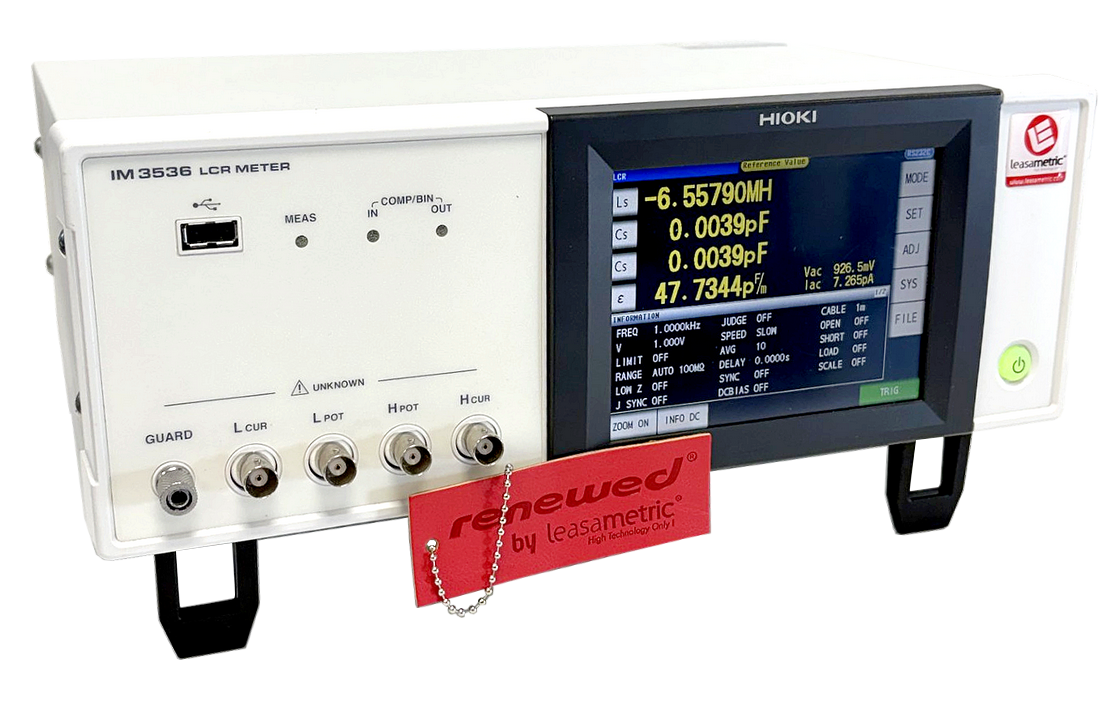

IM3536 Hioki reNEWed by Leasametric

LCR Meter :

• 4 Hz to 8 MHz measurement frequency,
• Guaranteed accuracy : 1 mΩ to 200 MΩ,
• Measurement time : 1 ms (0.001 sec.),
• High-precision measurement of ±0.05% rdg. (representative value),
• DC bias function 10 mV to 5 V: Measure under conditions simulating actual use or in accordance with industry standards,
• Current Variable : 10 µA to 100 mA RMS,
• 5.7inch colour TFT with touch panel,
• EXT I/O (handler), USB, USB flash drive, LAN, GP-IB, RS-232C, BCD interfaces.
