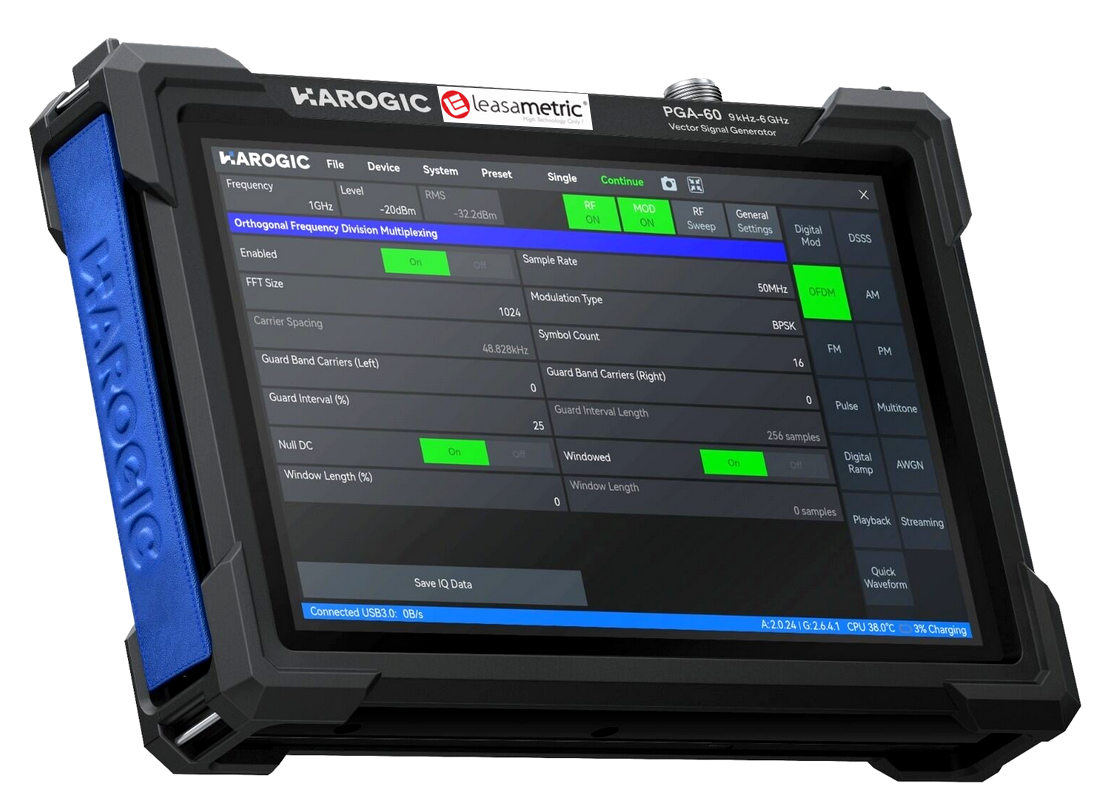

PGA-60 HAROGIC
Signal Generators
9 kHz to 6 GHz Portable vector signal generator, 1.4 kg with a 10.1-inch multitouch display, LAN, USB ports.
| RENTAL | 225 € /week* | ||||
| SALE |
|
||||
Specifications : PGA-60 HAROGIC
Portable vector signal generator :
- 9 kHz to 6 GHz,
- 100 MHz Modulation Bandwidth 50 MHz real-time,
- Memory depth : 128 MB (32 M samples),
- 1 GHz phase noise : -124 dBc/Hz@10 kHz,
- Maximum output power : 7 dBm to 14 dBm, 25 dBm (opt.),
- Minimum output power : ≤-100 dBm across full frequency range,
- Harmonics : ≤-50 dBc (0 dBm output, typical),
- 16-bit DAC for high-quality baseband waveform,
- FPGA-based high-performance interpolator,
- Fine sampling rate adjustment supported,
- Fine reference frequency adjustment supported,
- Built-in GNSS for timing, positioning, and frequency calibration,
- Supports remote control,
- Battery life : 2.5 hours; supports power-bank operation,
- Portable design : 1.4 kg with a 10.1-inch multitouch display,
- LAN, USB ports.
Download the technical documentation PGA-60 HAROGIC
You need to be connected to consult and download the documentation
Create my account / Connexion
The Harogic PGA-60 is a portable vector signal generator with a built-in display, designed for RF development, testing, and field applications.
It covers a frequency range of 9 kHz to 6 GHz and offers an RF bandwidth of up to 100 MHz.
The PGA-60 also incorporates a 16-bit digital-to-analog converter (DAC) and an FPGA-based interpolator, enabling the generation of waveforms with high precision.
All this makes it an attractive option for users seeking high performance in a portable instrument.
