GPM-8213 Instek
Energy Analysers
Programmable single-phase digital power meter, IEC 62301 standard, DC to 6 KHz, RS-232C, USB, LAN, GP-IB.
| RENTAL | 49 € /week* | ||||
| SALE |
|
||||
Specifications : GPM-8213 Instek
Programmable single-phase digital wattmeter :
- 4″ TFT LCD,
- Two data display modes :
- Standard: two major measuring elements + six secondary measuring elements,
- Simple displaying test data of four different measuring items,
- Meets the requirement of IEC 62301 power measurement,
- Voltage/current test frequency bandwidth : DC ~ 6kHz,
- Resolution 1 mW,
- Lowest current range 5 mA, resolution 0.1 μA,
- W-h (power vs time) / A-h (current vs time) integration function,
- Total harmonic distortion measurement,
- Front panel test terminal,
- Standard RS-232C interface, USB device, LAN,
- Optional GP-IB interface.
Download the technical documentation GPM-8213 Instek
You need to be connected to consult and download the documentation
Create my account / Connexion

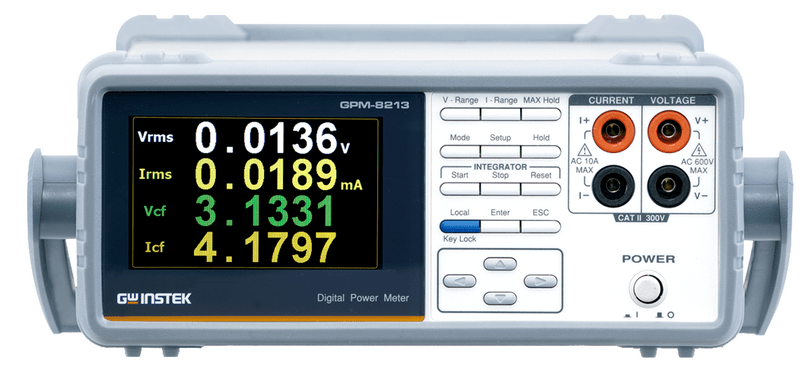

The GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power measurements.
Powerful features including a 4-inch TFT LCD screen, five-digit measurement display, 19 power measurement settings, built-in measurement function, high-precision voltage/current/power measurement capabilities, terminals input on the front/rear panels and various communication ports, should facilitate users with clear, convenient and accurate power measurements.
