GL100-WL Graphtec

Plotters - Loggers

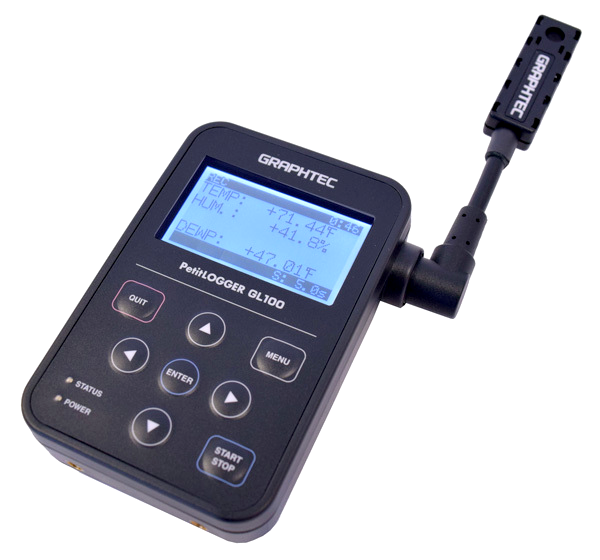

The GL100-WL PetitLOGGER from Graphtec is a stand-alone logger with up to 4 measurement channels.

Find the GL100 Graphtec in rental, purchase or refurbished by Leasametric.

RENTAL 31  /week*
Brand New Price Warranty 24 month 355

Set your quotation

Choice of delivery *

Options preference

Enter all the available options you want to add, separated by commas.


Specifications : GL100-WL Graphtec

GL100 Graphtec

  • 4 channel recorder,
  • Chassis with display, USB 2.0, Wireless network,
  • Acquisition type: Voltage/Thermocouples/Humidity/Acceleration/Thermistance/Current/CO2/UV,
  • RAM memory approx. 4.9 MB.

The rental price is given as an indication for a 4 channel voltage / temperature version. Other configurations NC.


Available options GL100-WL Graphtec

CAL Standard Calibration 4-Ch Voltage / Temperature 195
GS-TH Temperature/Humidity sensor -20 to +85°C, humidity 0 to 100% 110
GS-3AT Acceleration/Temperature sensor up to 10G, temperature -10 to +85°C 285
GS-4VT 4-Ch Voltage/Temperature adapter 20mV to 50V, K/T thermocouple 320
GS-4TSR 4-Ch adapter Thermistor -40 to +120°C 260
GS-103AT-4P Thermistor sensor normal type 3m, 4 pieces, -40 to +105°C 110
GS-103JT-4P Normal type thermistor sensor 3m, 4 pieces, -40 to +120°C 110
GS-LXUV Illuminance/UV sensor 350
GS-CO2 CO2 sensor (up to 9999 ppm) 505
GS-AC50A AC current sensor (50A), for GS-DPA-AC module 110
GS-AC100A AC current sensor (100A), for GS-DPA-AC module 110
GS-AC200A AC current sensor (200A), for GS-DPA-AC module 110
GS-DPA-AC AC current sensor adapter, for connecting two sensors 275
GS-DPA Double input adapter, to connect two sensors 145
GS-EXC Extension cable, 1.5m long 65
USB - AC USB adapter – 220VAC mains 25
M-SD 16 Go 16 GB micro SD card 25

Download the technical documentation GL100-WL Graphtec

You need to be connected to consult and download the documentation

About the GL100-WL Compact Data Logger “Petit Logger” :

The Graphtec brand is well known for its reliable and easy to use stand-alone recorders.

The Graphtec GL100-WL PetitLOGGER is a stand-alone recorder with up to 4 measurement channels. Different inputs are available depending on the sensor or the adapter used: Voltage/Thermocouples/Humidity/Acceleration/Current/CO2/UV. RAM memory approx. 4.9 MB. USB 2.0, Wireless network for the GL100-WL model.

Leasametric offers this PetiLOGER GL100 for sale and rental. Moreover thanks to its ISO 9001 certified laboratory Leasametric can calibrate this instrument.

If you want to know more about the Graphtec’s PetitLOGGER GL100 and all its accessories, download the brochure in PDF format.
