5522A/SC1100 Fluke


FLUKE 5522A/SC1100 calibrator, for DMM and 1100 MHz oscilloscopes.

RENTAL 2 500  /week*
Brand New Price Warranty 24 month 97 500

Set your quotation

Choice of delivery *

Options preference

Enter all the available options you want to add, separated by commas.


Specifications : 5522A/SC1100 Fluke

FLUKE 5522A/SC1100 calibrator :

  • Portable and fixed multimeters (analog and digital) up to 6 digits.
  • Power probes and multimeter clamps.
  • Thermocouples and RTD resistance probes.
  • Process calibrator.
  • Data recorders.
  • Graphic and paper recorders,
  • Wattmeters.
  • Harmonic analyzers for power,
  • Power quality analyzers (optional),
  • Oscilloscopes, analog or digital, at 600 MHz or 1.1 GHz (in options). Characteristics:

General Specifications :

  • Continuous tension : 0 to ± 1,020 V.
  • Continuous current : 0 to 20.5 A.
  • Alternative voltage > 1 mV to 1,020 V > 10 Hz to 500 kHz,
  • Volt x Hertz : 1000 V@ 10 kHz/330 V@100 kHz.
  • Alternate current > 29 A to 20.5 A, > 10 Hz to 350 kHz.
  • Waveforms: Sinusoidal, square, triangle, truncated sinusoidality.
  • Resistance: 0 to 1,100 M.
  • Capacity: 220 pF to 110 F.
  • Power (ghost loads): 20.9 kW.
  • Phase control : 0.01°.
  • Thermocouple (source and temperature measurement): B, C, E, J, K L N R, S, T, U 10-V/C.
  • RTD (temperature source),
  • Interfaces : RS-232, IEEE 488.
  • Frequency uncertainty : < 2.5 ppm, External frequency reference (10 MHz),
  • SC1100 oscilloscope calibrator, 5 mV to 3.5 Vpp max, frequencies from 50 to 1100 MHz,
  • Power calibrator (optional) : Composite harmonics, oscillation simulation, flex simulation modes and swellings.


Available options 5522A/SC1100 Fluke

CAL Standard Calibration 2 450
EXTRACAL Constat d'étalonnage cofrac 3 750

Download the technical documentation 5522A/SC1100 Fluke

You need to be connected to consult and download the documentation

About the Fluke 5522A serie calibrators :

For decades, Fluke has been the benchmark for calibrators in metrology laboratories.

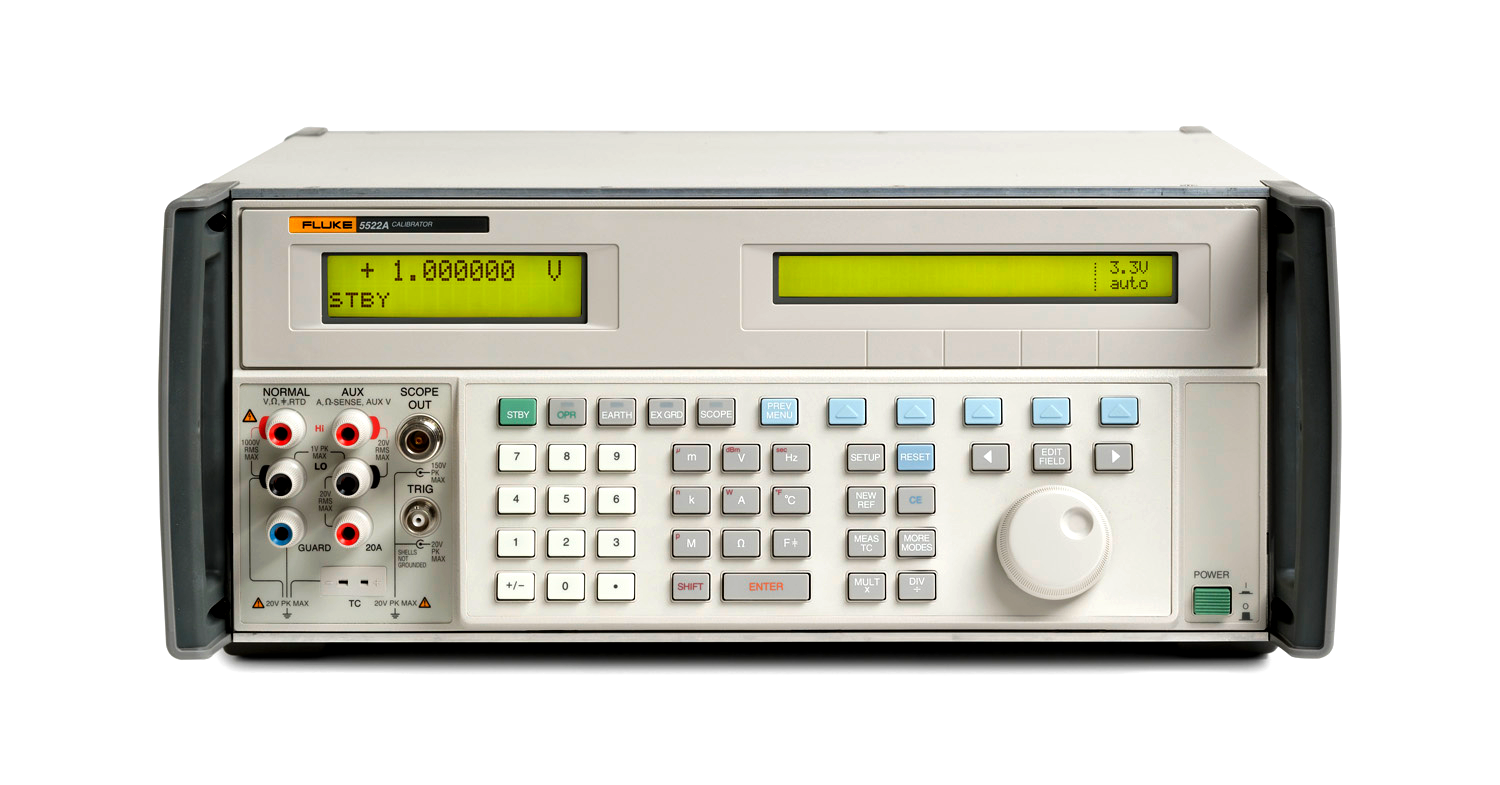

The Fluke 5522A Multifunction Electrical Calibrator calibrates a wide range of equipment. Equipped with oscilloscope options it also offers the possibility to calibrate oscilloscopes from 600 MHz to 1.1 GHZ.

The Fluke 5522A calibrator is a reliable, robust and accurate device. It is easily transportable for on-site calibration campaigns. Measurements can be automated to improve production with MetCall® software.

The Fluke 5522A calibrator generates DC and AC voltages and currents with high accuracy. It allows to calibrate resistors, capacities, thermocouples, oscilloscopes. It can measure thermocouple temperature, pressure and with the PQ option to calibrate measuring instruments in accordance with IEC and other regulatory standards.

Leasametric is familiar with Fluke calibrators because our ISO 9001 certified laboratory is equipped with them.

Leasametric offers innovative solutions for both rental and sale, such as taking back your old models like the Fluke 5500A or 5520A to save a lot of money.

Download the brochure in PDF format to learn more about the Fluke 5522A calibrators.
