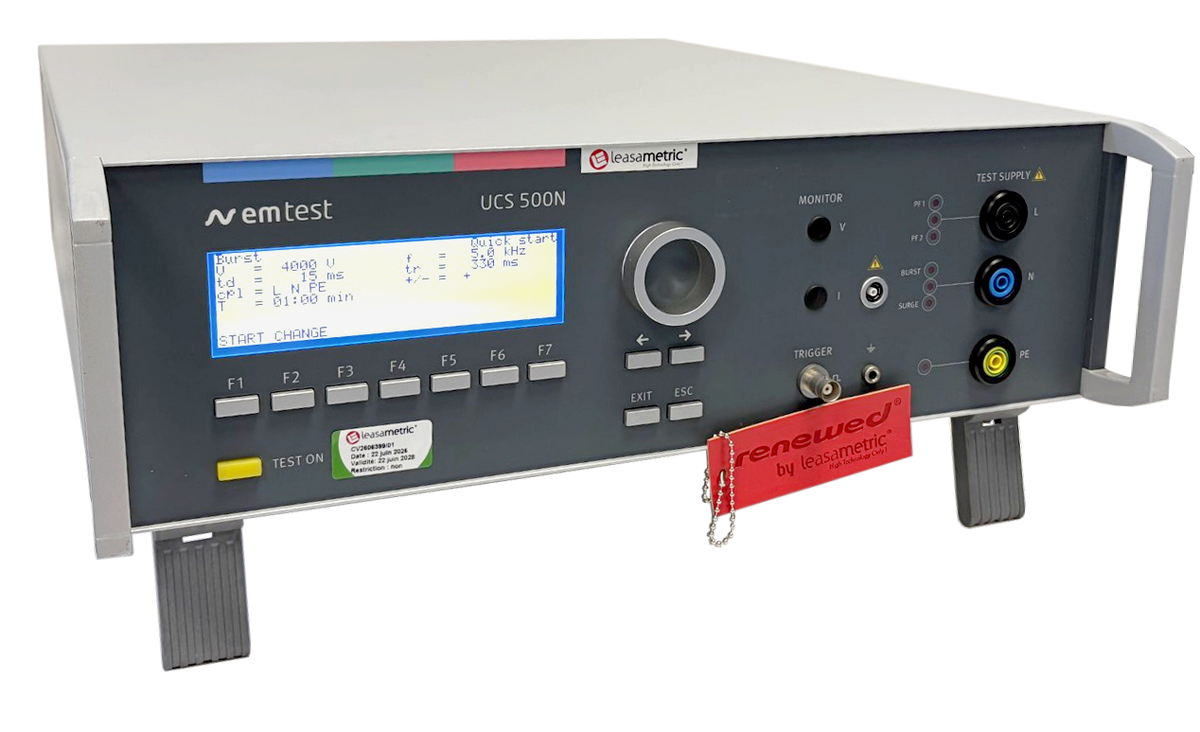

UCS500N5 EM Test
EMC Measurement
Electrical fast transient/burst tester for standards IEC 61000-4-4 > IEC 61000-4-5 > IEC 61000-4-8 > IEC 61000-4-9 > IEC 61000-4-11 > IEC 61000-4-29 > EN 61000-6-1 > EN 61000-6-2; USB & IEEE control interfaces.
| RENTAL | 325 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : UCS500N5 EM Test
Electrical Fast Transient (EFT) / Burst Tester :
- For standards IEC 61000-4-4 > IEC 61000-4-5 > IEC 61000-4-8 > IEC 61000-4-9 > IEC 61000-4-11 > IEC 61000-4-29 > EN 61000-6-1 > EN 61000-6-2,
- Test voltage : 200 V – 5,500 V ± 10%; 100 V – 2,750 V ± 10% into a 50 Ω load,
- Polarity : Positive/negative,
- Control interfaces : USB & IEEE.
Download the technical documentation UCS500N5 EM Test
The ultra-compact UCS 500N5 simulator is designed to meet testing requirements for electrical fast transients (EFT/burst), surge, and voltage dips/interruptions in accordance with international standards (basic and generic) as well as product-specific standards.
The UCS 500N5 is the most cost-effective testing solution for performing fully compliant immunity tests required for CE marking.
Featuring a built-in CDN for single-phase EUTs (Equipment Under Test), it can be expanded to test three-phase EUTs using an automatically controlled external coupling network capable of handling currents up to 100 A.
