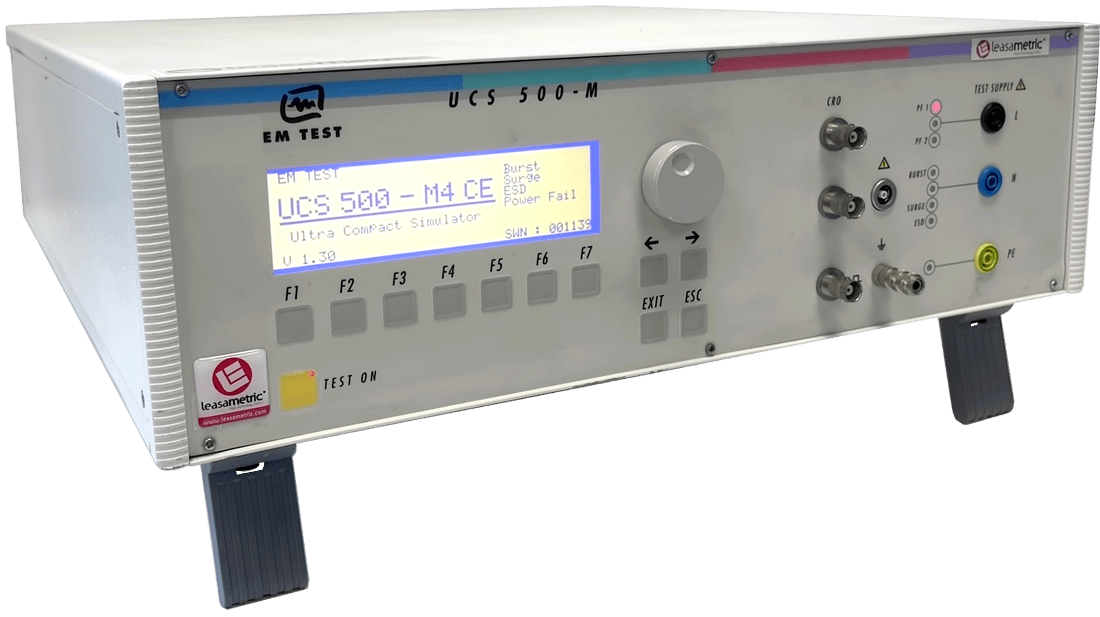

UCS500M EM Test reNEWed by Leasametric
EMC Measurement
Ultra compact simulator, EMC tests of industrial electronics with optional ESD available BURST, RS-232, IEEE remote control.
| RENTAL | 690 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : UCS500M EM Test reNEWed by Leasametric
Ultra compact simulator, EMC tests of industrial electronics with optional ESD available BURST :
- Standards (61000-4-4) and SURGE (61000-4-5),
- Optional : ESD (61000-4-2), PowerFail AC (61000-4-11) + DC (61000-4-29) and magnetic fields 61000-4-8/9,
- Programmable RS-232, IEEE, 0-10V analog control.
Download the technical documentation UCS500M EM Test reNEWed by Leasametric
The UCS500M is an Ultra Compact Simulator that tests to IEC and European Community specifications for burst, surge,
voltage dips and drops, magnetic fields and ESD air and contact discharge.
The UCS500M tests to levels up to 4400 V.
With the ESD option, the UCS500M tests up to 15 kV air and 8 kV contact discharge.
The UCS500M has excess capability to support future standards modifications. It contains a built-in CDN to accommodate EUT power requirements to 250 V and 16 A.
A special version can supply up to 32 A if desired.
The UCS500M includes outputs for external single and three phase coupling networks. It can be operated from the front panel or remotely via standard RS-232 and IEEE 488 data buses using the ISM IEC software. The standard software also provides complete test reports, which are easily converted to word via a standard RTF conversion feature.
