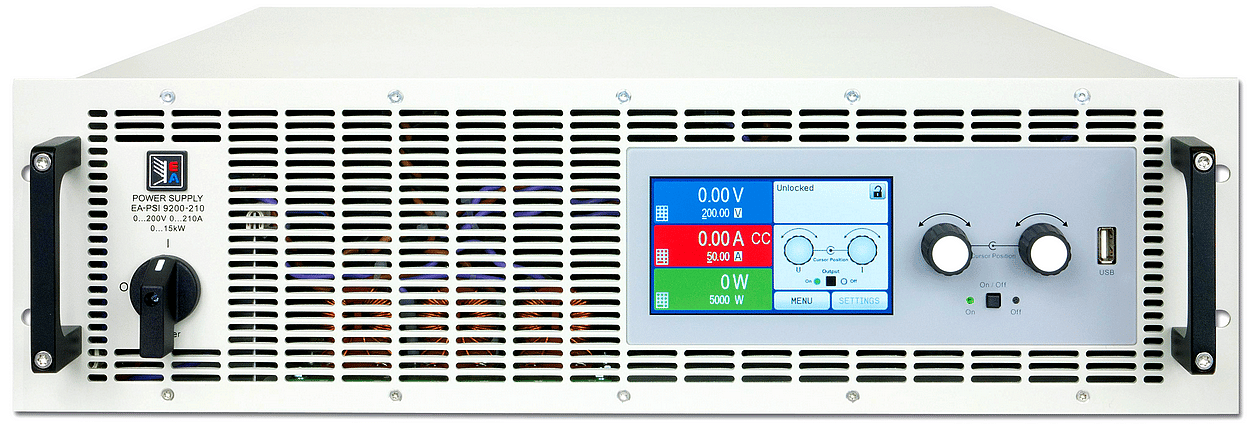

PSI 9750-60-3U Elektro-Automatik

Heavy Duty Laboratory DC Power Supllies, range PSU9000/3U, 3 KW to 150 KW :

• Multi-phase input 340…460 VAC,
• High efficiency up to 95,5%,
• Output power ratings : 0…3.3 kW, 0…5 kW, 0…6.6 kW, 0…10 kW, 0…15 kW, expandable up to 150 kW,
• Output voltages : 0…40 V up to 0…1500 V,
• Output currents : 0…30 A up to 0…510 A, expandable up to 0…5100 A,
• Flexible, power regulated output stage,
• Various protection circuits (OVP, OCP, OPP, OTP),
• Intuitive TFT touch panel with display for values, status and notifications,
• Remote sensing with automatic detection,
• Galvanically isolated, analog interface with U / I / P programmable via 0…10 V or 0…5 V, U / I monitoring via 0…10 V or 0…5V,
• Integrated true function generator,
• Photovoltaic array simulation,
• Internal resistance simulation and regulation,
• Temperature controlled fans for cooling,
• 40 V models according to SELV (EN 60950),
• USB port integrated,
• EMC TÜV approved for IEC 61000-6-2:2006 Class B,
• Optional, digital interface modules or alternatively installed IEEE/GPIB port (option),
• SCPI command language supported.

In total, there are 20 models in this range of Power Pupplies, the price is given for the model EA-PSI-9750-60-3U (750V, 60A, 15 KW), please contact us for ReNEWed sale prices or rental prices for each model.
