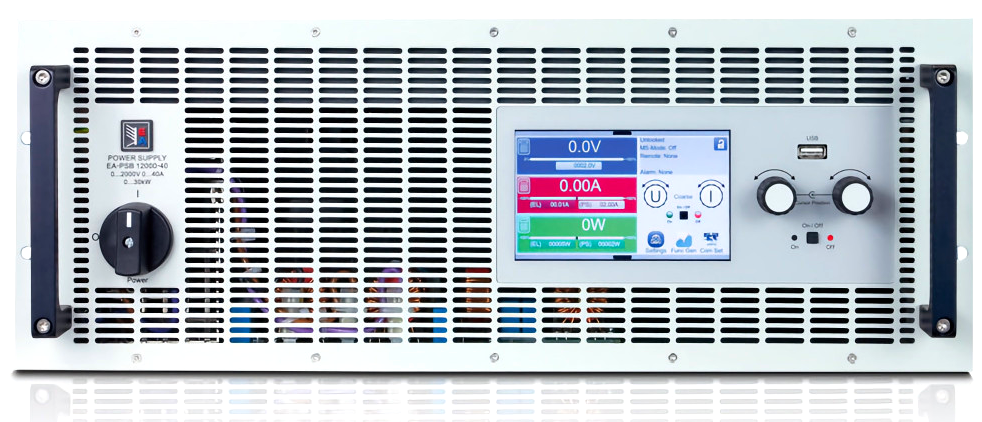

PSI 10360-240 Elektro-Automatik
DC Power Supplies
0…360 V, 0…240 A 30 KW Programmable DC Laboratory Power Supply, Color 5″ TFT display with touch control and intuitive user interface, Build-in USB/Ethernet interfaces.
| RENTAL | 945 € /week* | |||||||
| SALE |
|
|||||||
Specifications : PSI 10360-240 Elektro-Automatik
30 KW Programmable DC Laboratory Power Supply :
- 0…360 V, 0…240 A,
- Wide range input, 208 V – 480 VAC 3 ph,
- Active Power Factor Correction, typical 0.99,
- Very high efficiency up to over 96 %,
- High performance of 30 kW per unit,
- Voltage from 0 – 10 V up to 0 – 2000 V,
- Currents from 0 – 20 A up to 0 – 1000 A,
- Flexible power regulated DC-output stages (autoranging),
- Regulation mode CV, CC, CP, CR with fast crossover,
- Digital regulation, high resolution with 16-bit ADCs and DACs, selection of control speed : Normal, Fast, Slow,
- Color 5″ TFT display with touch control and intuitive user interface,
- Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series,
- Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series,
- Integrated function generator with predefined curves,
- Predefined automotive test procedures for LV123, LV124 and LV148,
- Command languages and drivers : SCR and ModBus, LabVIEW, IVI,
- Build-in interfaces : USB/Ethernet/Analog/USB Host/Master-Slave-Bus/Share-Bus,
Download the technical documentation PSI 10360-240 Elektro-Automatik
