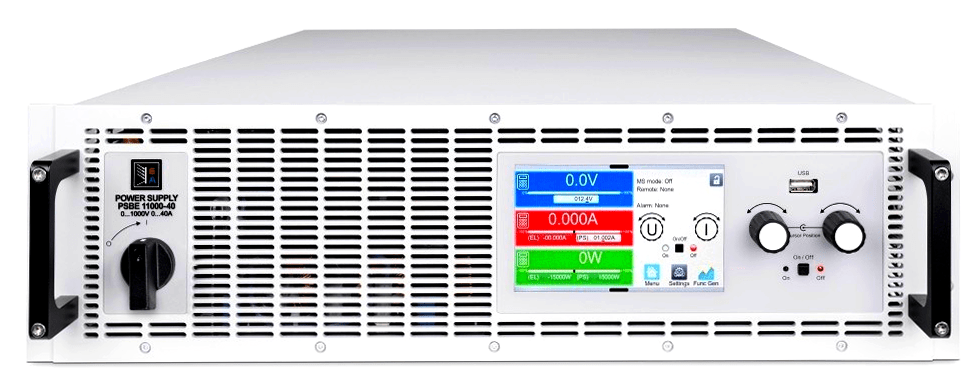

PSBE-10500-30-3U Elektro-Automatik

Programmable Bidirectional DC-Power Supply :

• Wide range input, 208 V -480 V ±10 % 3ph AC,
• Active Power-Factor-Correction, typical 0.99,
• Bidirectional power supply, 2-quadrants in source and sink,
• ln load operation, regenerative with energy recovery into the grid,
• Very high efficiency up to over 96 %,
• High performance of up to 15 kW per unit,
• Voltage fram 0 -10 V up to 0 – 2000 V,
• Currents from 0 -20 Aup to 0 – 510 A,
• Flexible power regulated DC input/output stages (autoranging),
• Regulation mode CV, CC, CP, CR with fast crassover,
• Digital regulation, high resolution with 16bit ADCs and DACs, selection of contrai speed : Normal, Fast, Slow,
• Color 5″ TFT display with touch contrai and intuitive user interface,
• Galvanically isolated Share-Bus for parallel operation of ail power classes in the 10000 series,
• Master-Slave bus for parallel operation of up to 64 units of ail power classes in the 10000 series,
• Command languages and drivers : SCPI and ModBus,
• LabVIEW, IVI.
