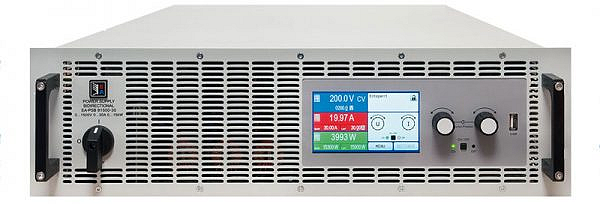

PSB 9360-120 Elektro-Automatik
DC Power Supplies
0 to 360 V, 0 to 120 A, 15 kW Programmable, Bi-directional DC source, USB and Ethernet port integrated or alternatively installed GP,IB port.
| RENTAL | 745 € /week* | |||||||
| SALE |
|
|||||||
Specifications : PSB 9360-120 Elektro-Automatik
Programmable, Bi-directional DC source :
-
Voltage 0 to 360 V, Current 0 to 120 A, Power 0 to 15 kW,
-
For 208 V, 400 V or wide range 342…528 V AC supply,
-
High efficiency of up to 95.5%,
-
Output power ratings: 3.3 kW, 5 kW, 6.6 kW, 10 kW or 15 kW, expandable up to 450 kW,
-
Output voltages : 0…40 V up to 0…1500 V,
-
Output currents : 20 A up to 510 A,
-
Autoranging output stage Various protection circuits (OVP, OCP, OPP, OTP),
-
Control panel with pushbuttons and color TFT for actual values, set values, status and alarms,
-
Galvanically isolated, analog interface,
-
Temperature-controlled fans for cooling,
-
Discharge circuit (Uout < 60 V in ≤ 10 s),
-
USB and Ethernet port integrated or alternatively installed GP,IB port,
-
EMC TÜV approved for EN 61010 Class B,
-
SCPI command set and ModBus RTU support,
-
LabView VIs and control software for Windows.
Download the technical documentation PSB 9360-120 Elektro-Automatik
The Elektro Automatik EA-PSB 10360-120 3U bi-directional laboratory power supply is both a load and a power supply in one device.
It can deliver up to 120 A, 360 V & 15000 W and operates at up to 96% efficiency. This lab power supply uses two quadrants in source and sink mode, allowing you to effortlessly switch between these two modes.
It features automatically switching DC input/output stages, with control modes for CC, CV, CP, and CR, including fast crossover transitions. Thanks to its form factor, it can be placed on a desktop or mounted in a 19″ rack.
This product also includes an integrated function generator with predefined waveforms.
The high-resolution 16-bit ADC, 5″ color TFT display, and interfaces such as USB, analog, master/slave, and Ethernet — along with optional interfaces like CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, and Modbus — make it suitable for a wide range of applications. These include automotive testing with LV123, LV124, and LV148 procedures, battery testing with integrated battery/test mode, fuel cell simulation, and solar cell testing.
