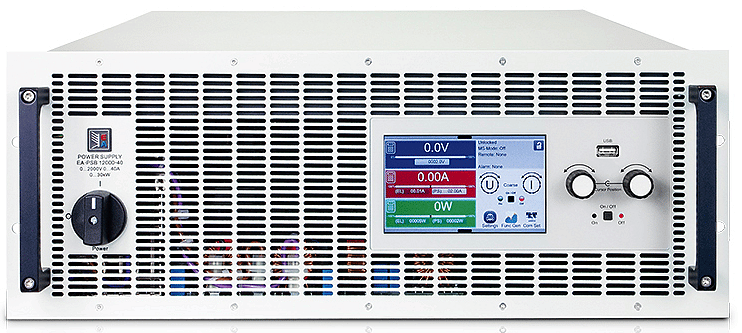

PSB 11000-80 4U Elektro-Automatik

EA-PSB 10000 30 kW serie, Programmable bidirectional DC power supplies :

• Wide range 342…528 V AC supply for operation on 380 V, 400 V or 480 V grids,
• US 208 V models available,
• Bidirectional device – power supply and electronic load in one,
• Energy recovery with high efficiency,
• Power rating : 30 kW per device, expandable up to 1920 kW,
• Voltage ratings : 60 V up to 2000 V,
• Current ratings : 40 A up to 1000 A,
• Flexible, power regulated DC<->AC stage,
• Various protection circuits (OVP, OCP, OPP, OTP),
• 5″ TFT touch panel with display for values, status and notifications,
• Remote sensing with automatic detection,
• Galvanically isolated interfaces (USB, Ethernet, analog, slot),
• Integrated function generator,
• Battery test, MPP tracking simulation, PV simulation according to EN 50530,
• Optional, digital interface modules,
• SCPI and ModBus command set,
• LabView VIs and control software for Windows.

In total, there are 9 models in this range of power supplies, the price is given for the model EA-PSB-11000-80-4U (1000 V, 80 A, 30 KW), please contact us for the ReNEWed® selling price or rental prices for each model.
