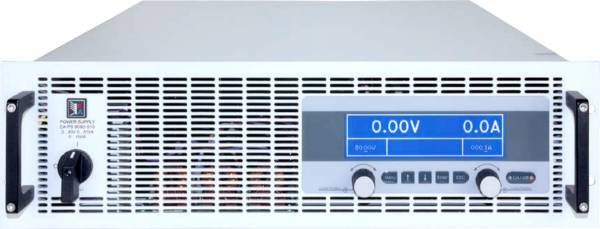

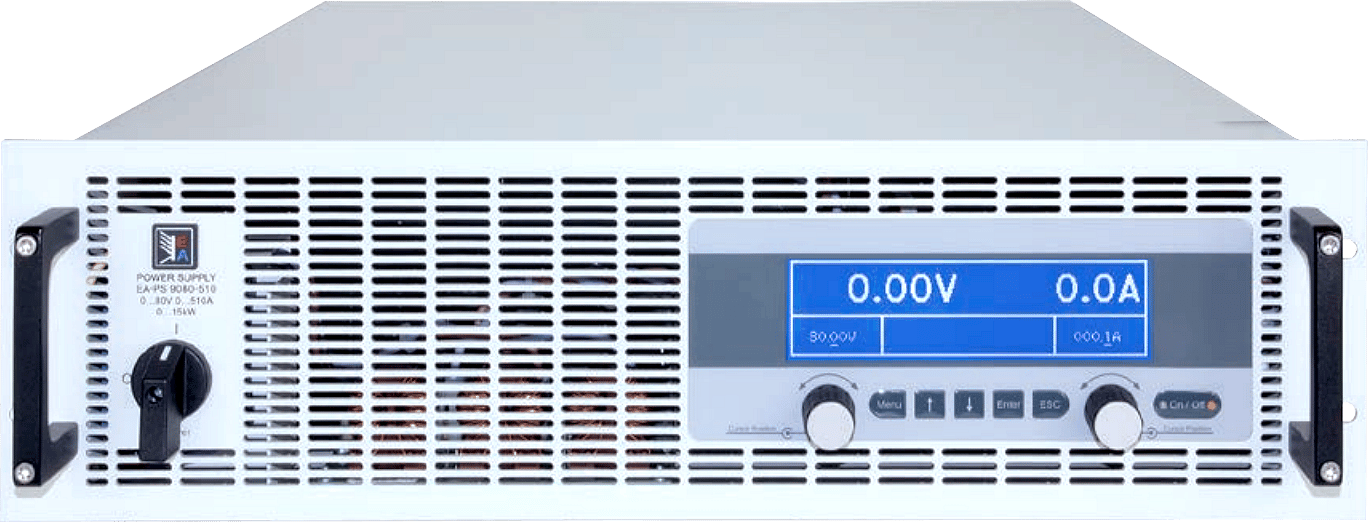

PS 9500-60 Elektro-Automatik
DC Power Supplies
EA-PS 9500-60 3U 10 KW, 0-500 V, 60 A Heavy Duty Laboratory DC Power Supplie, USB and Ethernet port integrated.
| RENTAL | 325 € /week* | ||||
| SALE |
|
||||
Specifications : PS 9500-60 Elektro-Automatik
EA-PS 9000 3U serie 3.3 KW – 150 KW, Heavy Duty Laboratory DC Power Supplies :
- Multi-phase input 340…460 VAC,
- High efficiency up to 95.5%,
- Output power ratings : 0…3.3 kW, 0…5 kW, 0…6.6 kW…10 kW, 0…15 kW, expandable up to 150 kW,
- Output voltages : 0…40 V up to 0…1500 V,
- Output currents : 0…30 A up to 0…510 A
- Expandable up to 0…5100 A
- Auto-ranging output stage,
- Various protection circuits (OVP, OCP, OPP, OTP),
- Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms,
- Galvanically isolated analog interface with U / I / P programmable via 0…10 V or 0…5 V, U / I monitoring via 0…10 V or 0…5 V,
- Remote sensing with automatic detection,
- Temperature controlled fans for cooling,
- 19“ enclosure in 3U,
- 40V models according to SELV (EN 60950),
- USB and Ethernet port integrated,
- EMC TÜV approved for IEC 61000-6-2:2006 Class B,
- SCPI command language supported.
In total, there are 20 models in this range of power supplies, the price is given for the model EA-PS 9500–60-3U (500 V, 60 A, 10 KW), please contact us for the ReNEWed® selling price or rental prices for each model.
