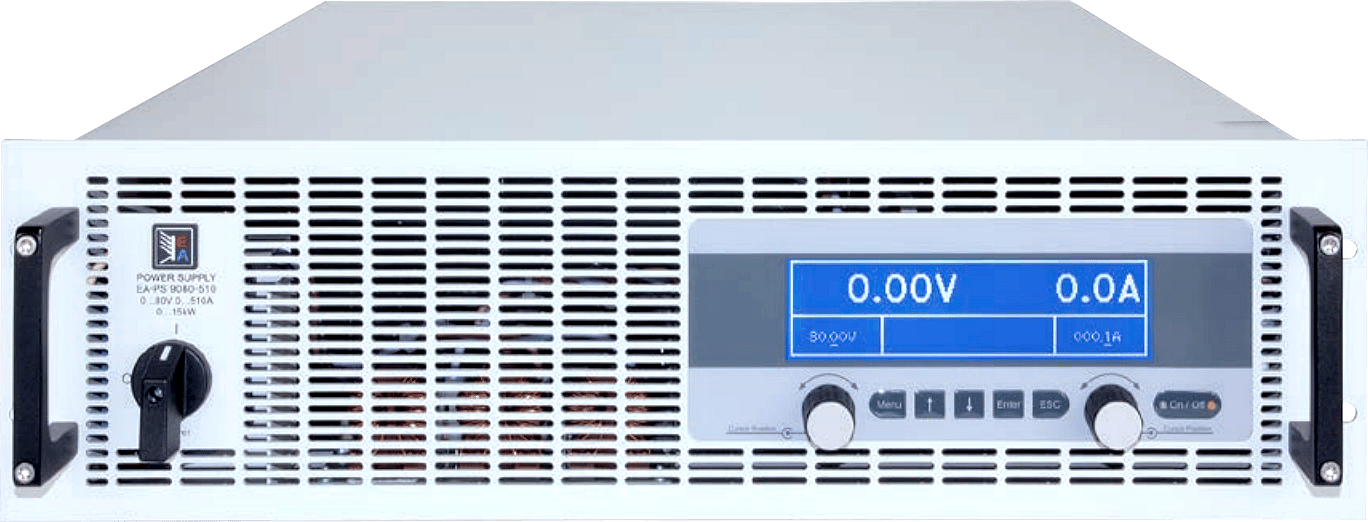

PS 9080-510 3U Elektro-Automatik

EA-PS 9000 3U serie 3.3 KW – 150 KW, Heavy Duty Laboratory DC Power Supplies :

• Multi-phase input 340…460 VAC,
• High efficiency up to 95.5%,
• Output power ratings : 0…3.3 kW, 0…5 kW, 0…6.6 kW…10 kW, 0…15 kW, expandable up to 150 kW,
• Output voltages : 0…40 V up to 0…1500 V,
• Output currents : 0…30 A up to 0…510 A
• Expandable up to 0…5100 A
• Auto-ranging output stage,
• Various protection circuits (OVP, OCP, OPP, OTP),
• Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms,
• Galvanically isolated analog interface with U / I / P programmable via 0…10 V or 0…5 V, U / I monitoring via 0…10 V or 0…5 V,
• Remote sensing with automatic detection,
• Temperature controlled fans for cooling,
• 19“ enclosure in 3U,
• 40V models according to SELV (EN 60950),
• USB and Ethernet port integrated,
• EMC TÜV approved for IEC 61000-6-2:2006 Class B,
• SCPI command language supported.

In total, there are 20 models in this range of power supplies, the price is given for the model EA-PS 9080-510-3U (80 V, 510 A, 15 KW), please contact us for the ReNEWed® selling price or rental prices for each model.
