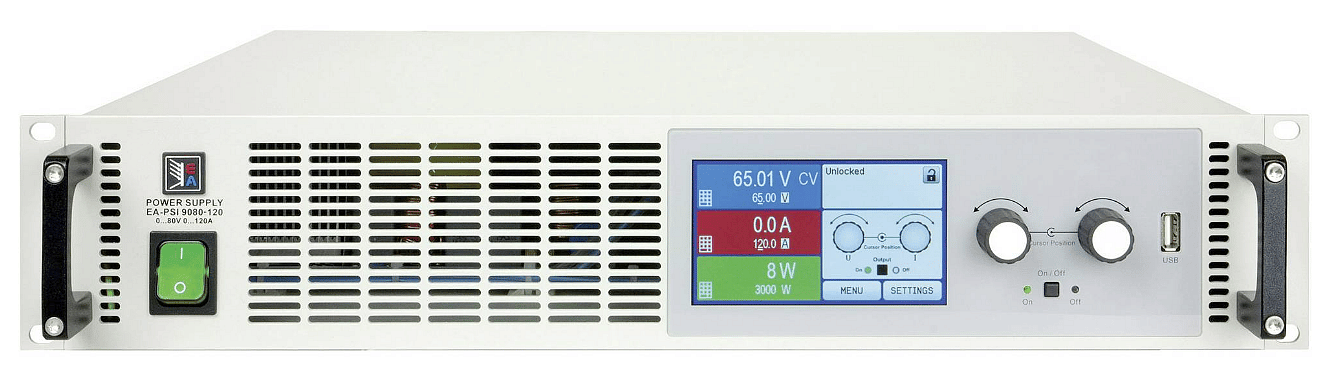

EA-PSI 9750-12 2U Elektro-Automatik

DC Power Supply serie EA PSI 9000 2U :

• Wide input voltage range 90…264 V with active PFC,
• High efficiency up to 93%,
• Output power ratings: 0…1000 W up to 0…3000 W,
• Output voltages: 0…40 V up to 0…750 V,
• Output currents: 0…4 A up to 0…120 A,
• Flexible, power regulated output stage,
• Various protection circuits (OVP, OCP, OPP, OTP),
• Intuitive TFT touch panel with display for values, status and notifications,
• Remote sensing,
• Galvanically isolated, analog interface with U / I / P programmable via 0…10 V or 0…5 V, U / I monitoring via 0…10 V or 0…5 V,
• Integrated true function generator,
• Photovoltaic array simulation,
• Internal resistance simulation and regulation,
• Temperature controlled fans for cooling,
• 40 V models according to SELV (EN 60950),
• USB port integrated,
• EMC according to EN 55022 Class B,
• Optional, digital interface modules or alternatively,
• Installed IEEE/GPIB port,
• SCPI command language supported.

EA-PSI 9000 2U 1000 W – 3000 W serie :

PSI 9040-40 2U 0…40 V 0…40 A 0…1000 W
PSI 9080-40 2U 0…80 V 0…40 A 0…1000 W
PSI 9200-15 2U 0…200 V 0…15 A 0…1000 W
PSI 9360-10 2U 0…360 V 0…10 A 0…1000 W
PSI 9500-06 2U 0…500 V 0…6 A 0…1000 W
PSI 9750-04 2U 0…750 V 0…4 A 0…1000 W
PSI 9040-60 2U 0…40 V 0…60 A 0…1500 W
PSI 9080-60 2U 0…80 V 0…60 A 0…1500 W
PSI 9200-25 2U 0…200 V 0…25 A 0…1500 W
PSI 9360-15 2U 0…360 V 0…15 A 0…1500 W
PSI 9500-10 2U 0…500 V 0…10 A 0…1500 W
PSI 9750-06 2U 0…750 V 0…6 A 0…1500 W
PSI 9040-120 2U 0…40 V 0…120 A 0…3000 W
PSI 9080-120 2U 0…80 V 0…120 A 0…3000 W
PSI 9200-50 2U 0…200 V 0…50 A 0…3000 W
PSI 9360-30 2U 0…360 V 0…30 A 0…3000 W
PSI 9500-20 2U 0…500 V 0…20 A 0…3000 W
PSI 9750-12 2U 0…750 V 0…12 A 0…3000 W
