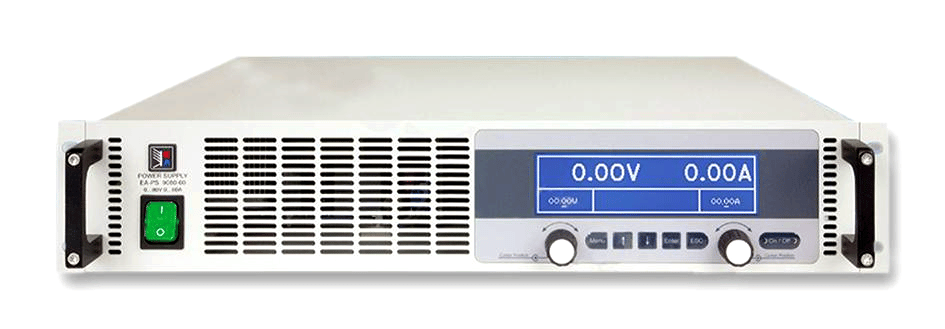

EA-PS 9500-20 2U Elektro-Automatik

DC Power Supply serie EA-PS 9000 2U 1000 W – 3000 W :

• Wide input voltage range 90…264 V, with active PFC,
• High efficiency up to 93%,
• Output power ratings : 0..1000 W up to 0…3000 W,
• Output voltages : 0…40 V up to 0…750 V,
• Output currents : 0…4 A up to 0…120 A,
• Flexible, power regulated output stage,
• Various protection circuits (OVP, OCP, OPP, OTP),
• Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms,
• Remote sensing,
• Galvanically isolated analog interface with U / I / P programmable via 0…10 V or 0…5 V, U / I monitoring via 0…10 V or 0…5 V,
• Temperature controlled fans for cooling,
• 40 V models according to SELV (EN 60950),
• Galvanically isolated USB and Ethernet port integrated,
• EMC according to EN 55022 Class B,
• SCPI command language supported.

EA-PS 9000 2U 1000 W – 3000 W range :

PS 9040-40 2U 0…40V 0…40A 0…1000W
PS 9080-40 2U 0…80V 0…40A 0…1000W
PS 9200-15 2U 0…200V 0…15A 0…1000W
PS 9360-10 2U 0…360V 0…10A 0…1000W
PS 9500-06 2U 0…500V 0…6A 0…1000W
PS 9750-04 2U 0…750V 0…4A 0…1000W
PS 9040-60 2U 0…40V 0…60A 0…1500W
PS 9080-60 2U 0…80V 0…60A 0…1500W
PS 9200-25 2U 0…200V 0…25A 0…1500W
PS 9360-15 2U 0…360V 0…15A 0…1500W
PS 9500-10 2U 0…500V 0…10A 0…1500W
PS 9750-06 2U 0…750V 0…6A 0…1500W
PS 9040-120 2U 0…40V 0…120A 0…3000W
PS 9080-120 2U 0…80V 0…120A 0…3000W
PS 9200-50 2U 0…200V 0…50A 0…3000W
PS 9360-30 2U 0…360V 0…30A 0…3000W
PS 9500-20 2U 0…500V 0…20A 0…3000W
PS 9750-12 2U 0…750V 0…12A 0…3000W

In total there are 18 models in this line of power supplies, the price is given for the model PS 9500-20 2U 0…500 V 0…20 A 3 KW, please contact us for the ReNEWed sale price ® or rental prices for each model.
