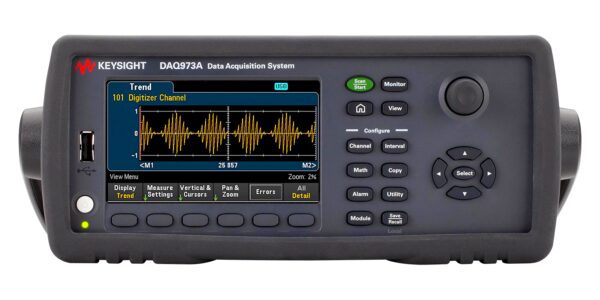

DAQ973A Keysight / Agilent

Acquisition

Data acquisition DAQ973A Keysight Agilent, 3-Slots, with digital multimeter 6 digits 1/2.

RENTAL 85  /week*
SALE
New price Warranty 36 month 2 645

Set your quotation

Choice of delivery *

Options preference

Enter all the available options you want to add, separated by commas.

Quantity

Specifications : DAQ973A Keysight / Agilent

Latest generation acquisition plant, 3-Slots, with digital multimeter 6 digits 1/2, accuracy 0.003%, 120 lanes, thermocouples, TFT 4.3″ screen, LAN, USB, GP-IB. Compatible with 34970A/34972A.

Available options DAQ973A Keysight / Agilent

CAL Standard Calibration 245

Download the technical documentation DAQ973A Keysight / Agilent

You need to be connected to consult and download the documentation

Main features of the DAQ973A Keysight :

In this DAQ973A acquisition unit, Keysight has integrated a multimeter. It has 3 slots for 9 different plug-in modules according to the acquisitions to be carried out: (DAQM900A, DAQM901A, DAQM902A, DAQM903A, DAQM904A, DAQM905A, DAQM907A, DAQM908A, DAQM909A). The scan rate is up to 450 channels/sec and has many other features. The DAQ973 Keysight allows you to sample more signals quickly and accurately.

The DAQ973 Keysight is also equipped with a 6-digit resolution multimeter ½ with very low noise and an accuracy in Vdc of 0.003%.

The DAQ973A has a modular and flexible design that makes it scalable from 20 to 120 channels. It allows the addition of actuators, digital converters and analog output channels for easy control.

This device comes with the BenchVue™ application, allowing to optimize the use in order to perform faster measurements. It allows data export, recording and visualization of measurements in real time with different types of displays.

Highlights of the DAQ973A Keysight :

  • Power station with 3 slots with USB and LAN, (for the GP-IB option see DAQ973A),
  • 4.3 inch TFT color screen,
  • 9 plug-in switching and control modules to choose from,
  • 24-bit sampling rate of 800 KS/s with a new 4-channel DAQM909A digitizing module,
  • Built-in signal conditioning measures thermocouples, RTDs and thermistors, volts and AC/DC current; resistance, frequency/period, diode test and capacitance,
  • Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs,
  • Ability to measure very low current ranges (1 μA DC and 100 μA AC) and a higher resistance range (1000 MΩ),
  • New self-calibration that compensates for internal drifts caused by time and temperature changes.

Leasametric has a repair service and an ISO 9001 certified metrology laboratoryfor the calibration of your DAQ973A Keysight central units and drawers and other measuring instruments.

To learn more about the DAQ973A Keysight central unit, and the DAQM900A, DAQM901A, DAQM902A, DAQM903A, DAQM904A, DAQM905A, DAQM907A, DAQM908A, DAQM909A acquisition boards, you can download the manual in the “technical information” tab.o learn more about the DAQ970A Keysight generator you can download the manual in the “technical information” tab.
